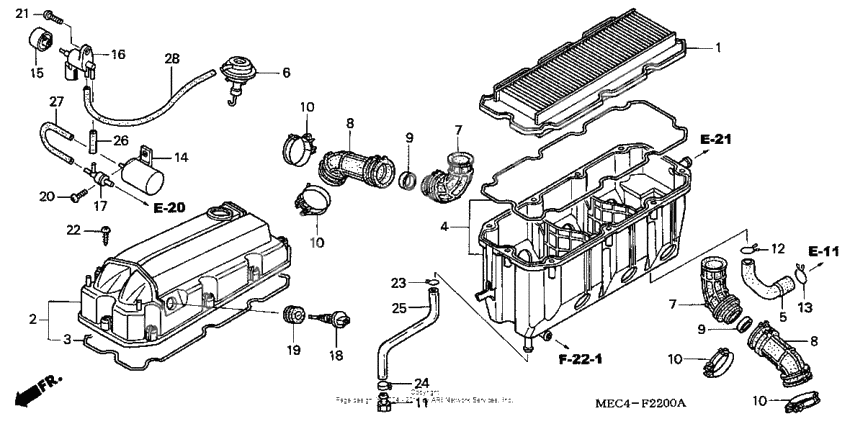

Воздушный фильтр
Воздушный фильтр
Фильтр воздушный (Ref #1)
1
Part #17210-MEC-003
Cover, air cleaner (Ref #2)
2
Part #17221-MEC-003
Seal, a/clnr hsg (Ref #3)
3
Part #17222-MEC-003
Housing, air cleaner (Ref #4)
4
Part #17231-MEC-003
Tube, breather (Ref #5)
5
Part #17233-MEC-000
DIAPHRAGM (Ref #6)
6
Part #17238-MW4-003
Tube a (Ref #7)
7
Part #17254-MEC-003
Tube a (Ref #7)
7
Part #17254-MEC-003
Tube a (Ref #7)
7
Part #17254-MEC-003
Tube a (Ref #7)
7
Part #17254-MEC-003
Tube b (Ref #8)
8
Part #17255-MEC-003
Tube b (Ref #8)
8
Part #17255-MEC-003
Tube b (Ref #8)
8
Part #17255-MEC-003
Tube b (Ref #8)
8
Part #17255-MEC-003
Collar, a/clnr tube (Ref #9)
9
Part #17256-MEC-003
Collar, a/clnr tube (Ref #9)
9
Part #17256-MEC-003
Collar, a/clnr tube (Ref #9)
9
Part #17256-MEC-003
Collar, a/clnr tube (Ref #9)
9
Part #17256-MEC-003
Plug, breather tube (Ref #11)
11
Part #17370-419-700
Clip, breather tube (Ref #12)
12
Part #17554-MB0-000
CLIP (Ref #13)
13
Part #18532-634-670
Chamber comp (Ref #14)
14
Part #36132-PH4-671
FILTER ASSY (Ref #15)
15
Part #36138-PR7-A01
Valve assy. (Ref #16)
16
Part #36163-PV0-004
Клапан (Ref #17)
17
Part #36627-MN5-003
Сенсор температуры воздуха (Ref #18)
18
Part #37880-MCA-003
Grommet, ta sensor (Ref #19)
19
Part #37881-MCA-003
Болт (Ref #20)
20
Part #93500-050-120-A
Болт (Ref #21)
21
Part #93500-050-160-A
Болт (Ref #22)
22
Part #93903-25480
CLIP (Ref #23)
23
Part #95002-02120
CLAMP (Ref #24)
24
Part #95002-412-000-8
Bulk hose, vinyl (Ref #25)
25
Part #95003-230-0860M
Bulk hose (3.5x8000) (Ref #26)
26
Part #95005-350-0810M
Bulk hose (4.5x1000) (Ref #28)
28
Part #95005-450-0110M
