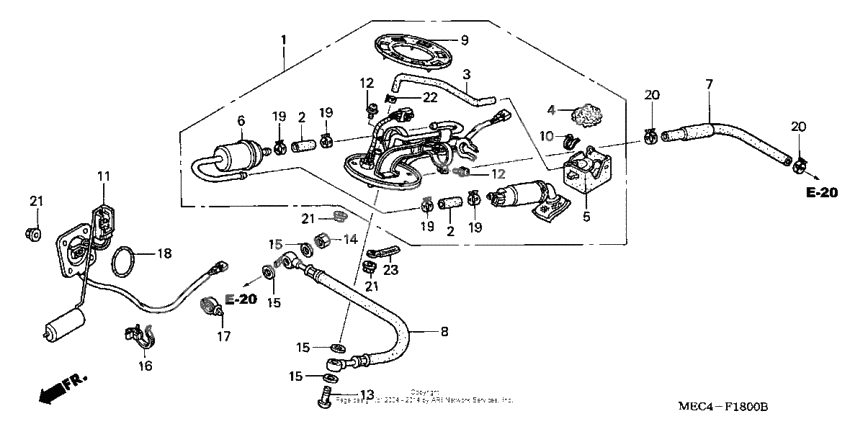

Fuel pump
Fuel pump
Pump assy., fuel (Ref #1)
1
Part #16700-MEC-013
Hose a, pump (Ref #2)
2
Part #16711-MCF-000
Hose a, pump (Ref #2)
2
Part #16711-MCF-000
Hose a, pump (Ref #2)
2
Part #16711-MCF-000
Hose a, pump (Ref #2)
2
Part #16711-MCF-000
TUBE (Ref #3)
3
Part #16713-MEC-000
Filter, fuel return (Ref #4)
4
Part #16714-MBG-000
RUBBER (Ref #5)
5
Part #16716-MEC-000
Фильтр топливный (Ref #6)
6
Part #16900-MEC-003
Hose, fuel return (Ref #7)
7
Part #17526-MEC-003
Hose, fuel feed (Ref #8)
8
Part #17527-MEC-003
Gasket, base (Ref #9)
9
Part #17574-MCF-000
BAND (Ref #10)
10
Part #32161-KM3-003
Fuel unit assy. (Ref #11)
11
Part #37800-MEC-003
Screw-washer (4x8) (Ref #12)
12
Part #90105-MBG-000
Screw-washer (4x8) (Ref #12)
12
Part #90105-MBG-000
Screw-washer (4x8) (Ref #12)
12
Part #90105-MBG-000
Screw-washer (4x8) (Ref #12)
12
Part #90105-MBG-000
Bolt, banjo (12mm) (Ref #13)
13
Part #90108-MBG-000
Nut a (Ref #14)
14
Part #90201-PD1-000
Ременная лента кабель (Ref #16)
16
Part #90672-SB2-003
CLIP (Ref #17)
17
Part #90683-SA0-003
Прокладка (Ref #18)
18
Part #91305-MC7-000
CLAMP (Ref #20)
20
Part #91406-SL4-931
CLAMP (Ref #20)
20
Part #91406-SL4-931
CLAMP (Ref #20)
20
Part #91406-SL4-931
CLAMP (Ref #20)
20
Part #91406-SL4-931
CLAMP (Ref #22)
22
Part #95002-408-500-4
Clip (4x60) (Ref #23)
23
Part #91410-KT7-000
