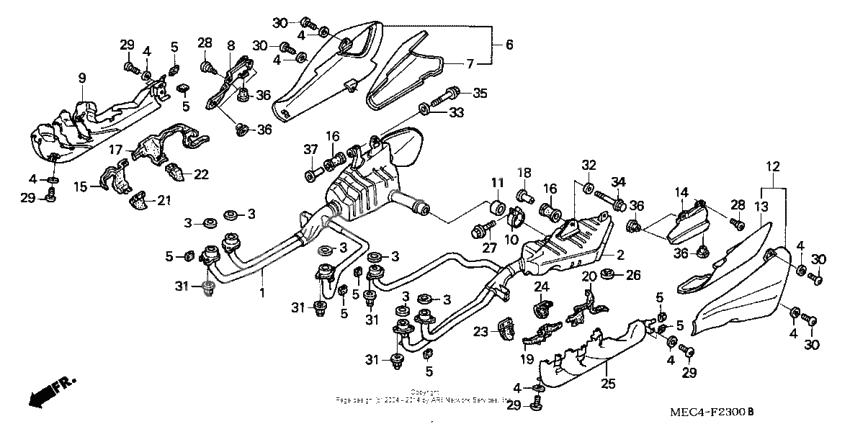

Muffler
Muffler
Muffler, r. ex. (Ref #1)
1
Part #18100-MEC-013
Muffler, l. ex. (Ref #2)
2
Part #18200-MEC-003
Cover, r. muffler (Ref #6)
6
Part #18300-MEC-670
Guard, r (Ref #7)
7
Part #18317-MEC-000
Plate, r (Ref #8)
8
Part #18320-MEC-670
Cover, r. ex. pipe (Ref #9)
9
Part #18350-MEC-671
Band, l. rr. muffler (Ref #10)
10
Part #18376-MCF-003
Gasket, rr. ex. (Ref #11)
11
Part #18393-MCF-003
Cover, l. muffler (Ref #12)
12
Part #18400-MEC-670
Guard, l (Ref #13)
13
Part #18417-MEC-000
Plate, l (Ref #14)
14
Part #18420-MEC-670
Rubber a, r. (upper) (Ref #15)
15
Part #18421-MEC-000
RUBBER (Ref #16)
16
Part #18421-MN5-000
RUBBER (Ref #16)
16
Part #18421-MN5-000
RUBBER (Ref #16)
16
Part #18421-MN5-000
RUBBER (Ref #16)
16
Part #18421-MN5-000
Rubber b, r. (upper) (Ref #17)
17
Part #18422-MEC-000
COLLAR (Ref #18)
18
Part #18422-MN5-000
Rubber a, l. (upper) (Ref #19)
19
Part #18423-MEC-000
Rubber b, l. (upper) (Ref #20)
20
Part #18424-MEC-000
Rubber a, r. (lower) (Ref #21)
21
Part #18425-MEC-000
Rubber b, r. (lower) (Ref #22)
22
Part #18426-MEC-000
Rubber a, l. (lower) (Ref #23)
23
Part #18427-MEC-000
Rubber b, l. (lower) (Ref #24)
24
Part #18428-MEC-000
Cover, l. ex. pipe (Ref #25)
25
Part #18450-MEC-671
RUBBER (Ref #26)
26
Part #50524-MEC-000
Болт (Ref #27)
27
Part #90103-KCM-620
Screw, pan (5x13) (Ref #28)
28
Part #90112-MBS-000
Screw, pan (5x13) (Ref #28)
28
Part #90112-MBS-000
Screw, pan (5x13) (Ref #28)
28
Part #90112-MBS-000
Screw, pan (5x13) (Ref #28)
28
Part #90112-MBS-000
Washer, 8mm (Ref #32)
32
Part #90465-MC4-000
Washer, plain, 8mm (Ref #33)
33
Part #9410308000
Bolt, flange, 8x60 (Ref #35)
35
Part #95701-0806000
Collar, muff mt (Ref #37)
37
Part #18430-MEC-000
-
-
