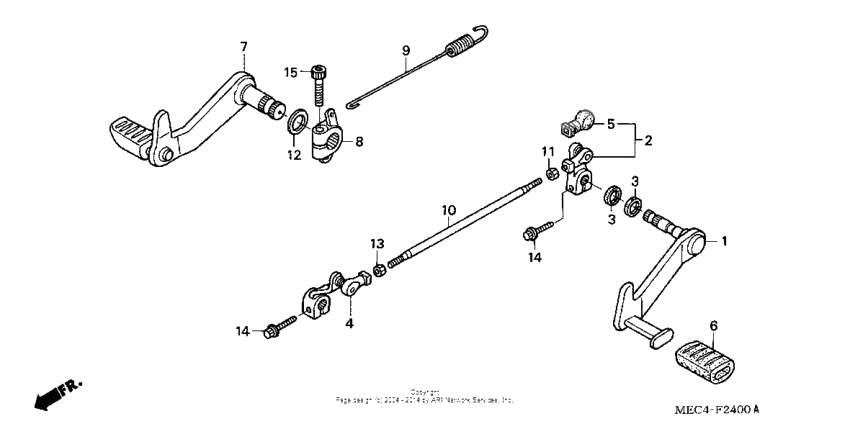

Pedal
Pedal
Pedal, gearshift (Ref #1)
1
Part #24701-MEC-000
Arm a, gearshift (Ref #2)
2
Part #24705-MEC-000
Rubber, dust seal (Ref #3)
3
Part #24706-MK3-770
Rubber, dust seal (Ref #3)
3
Part #24706-MK3-770
Rubber, dust seal (Ref #3)
3
Part #24706-MK3-770
Rubber, dust seal (Ref #3)
3
Part #24706-MK3-770
Arm b, gearshift (Ref #4)
4
Part #24710-MEC-010
Пыльник (Ref #5)
5
Part #24724-MBW-D21
Rubber, change pedal (Ref #6)
6
Part #24781-MEC-670
Pedal, rr. brake (Ref #7)
7
Part #46500-MEC-000
Arm, rr. brake (Ref #8)
8
Part #46505-MEC-000
Spring, brake pedal (Ref #9)
9
Part #46514-MEC-000
Bolt, tie rod (Ref #10)
10
Part #90065-KR3-000
Nut, tie rod (Ref #11)
11
Part #90201-KV3-700
Шайба (Ref #12)
12
Part #90466-166-600
Гайка (Ref #13)
13
Part #94002-060-000-S
Bolt, flange, 6x22 (Ref #14)
14
Part #96001-0602200
Bolt, flange, 6x22 (Ref #14)
14
Part #96001-0602200
Bolt, flange, 6x22 (Ref #14)
14
Part #96001-0602200
Bolt, flange, 6x22 (Ref #14)
14
Part #96001-0602200
Bolt, socket (8x28) (Ref #15)
15
Part #96600-0802800
