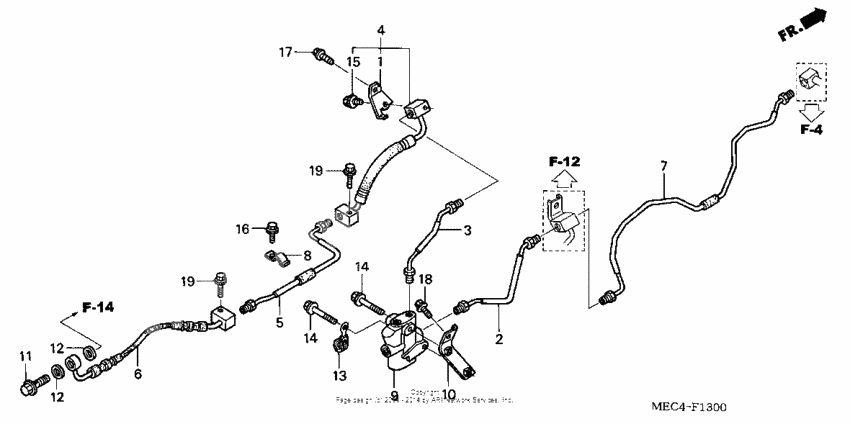

Proportion control valve
Proportion control valve
Stay, hose end (Ref #1)
1
Part #43156-MEC-000
Pipe, pcv joint (Ref #2)
2
Part #43311-MEC-000
Pipe a, rr. brake (Ref #3)
3
Part #43312-MEC-000
Hose b, rr. brake (Ref #4)
4
Part #43313-MEC-003
Pipe b, rr. brake (Ref #5)
5
Part #43314-MEC-000
Hose c, rr. brake (Ref #6)
6
Part #43315-MEC-003
Pipe, rr. (Ref #7)
7
Part #43320-MEC-000
Хомут (Ref #8)
8
Part #43453-MEC-A00
Valve assy. (Ref #9)
9
Part #46400-MEC-016
Stay, p.c.v. (Ref #10)
10
Part #50328-MEC-000
Bolt, oil (10x22) (Ref #11)
11
Part #90145-MS9-612
Шайба (Ref #12)
12
Part #90545-300-000
Шайба (Ref #12)
12
Part #90545-300-000
Шайба (Ref #12)
12
Part #90545-300-000
Шайба (Ref #12)
12
Part #90545-300-000
Clip, wire harness (Ref #13)
13
Part #91405-MG1-000
BOLT (Ref #14)
14
Part #95801-060-400-7
BOLT (Ref #14)
14
Part #95801-060-400-7
BOLT (Ref #14)
14
Part #95801-060-400-7
BOLT (Ref #14)
14
Part #95801-060-400-7
BOLT (Ref #15)
15
Part #96001-060-100-7
Болт (Ref #16)
16
Part #90123-MCH-A00
BOLT (Ref #17)
17
Part #96001-060-120-7
Bolt, flange, 6x16 (Ref #18)
18
Part #96001-0601607
Bolt (6x25) (Ref #19)
19
Part #90124-MCH-A00
Bolt (6x25) (Ref #19)
19
Part #90124-MCH-A00
Bolt (6x25) (Ref #19)
19
Part #90124-MCH-A00
Bolt (6x25) (Ref #19)
19
Part #90124-MCH-A00
