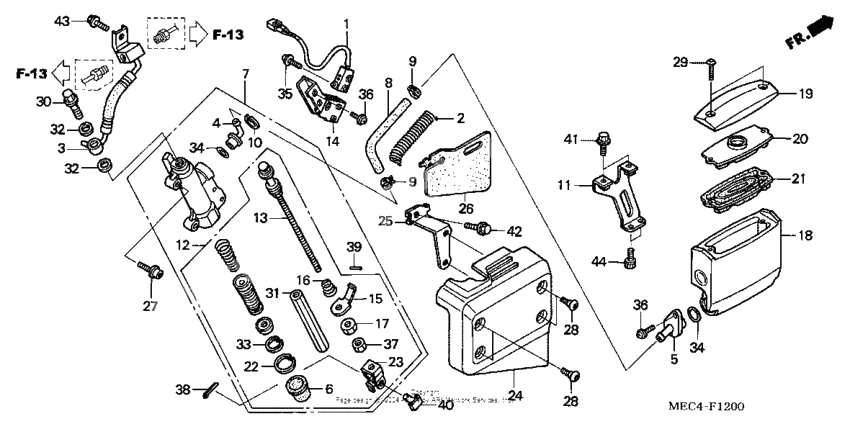

Rear brake master cylinder
Rear brake master cylinder
Switch, rr. stop (Ref #1)
1
Part #35350-MEC-000
Пружина (Ref #2)
2
Part #43156-MEC-006
Hose a, rr. brake (Ref #3)
3
Part #43310-MEC-003
Коннектор (Ref #4)
4
Part #43503-KS6-701
Соединение (Ref #5)
5
Part #43503-MAH-671
Ботинок (Ref #6)
6
Part #43504-MB2-006
M/cyl sub-assy, rr. (Ref #7)
7
Part #43510-MEC-016
Hose, rr. (Ref #8)
8
Part #43512-MEC-006
CLAMP (Ref #9)
9
Part #43514-KS6-701
CLAMP (Ref #9)
9
Part #43514-KS6-701
CLAMP (Ref #9)
9
Part #43514-KS6-701
CLAMP (Ref #9)
9
Part #43514-KS6-701
Circlip, rr. (Ref #10)
10
Part #43517-KS6-701
STAY (Ref #11)
11
Part #43518-MEC-000
Piston set, rr. (Ref #12)
12
Part #43520-MEC-006
Штанга (Ref #13)
13
Part #43530-MEC-006
Bracket, switch (Ref #14)
14
Part #43535-MEC-006
Плата переключателя (Ref #15)
15
Part #43537-MN5-006
Spring, switch (Ref #16)
16
Part #43538-MCA-006
Nut, switch plate (Ref #17)
17
Part #43539-MN5-006
Cup sub-assy., rr. (Ref #18)
18
Part #43540-MEC-006
Cap, master cylinder (Ref #19)
19
Part #43513-MEC-006
Пластина (Ref #20)
20
Part #45518-MEC-006
DIAPHRAGM (Ref #21)
21
Part #45520-MEC-006
Circlip (Ref #22)
22
Part #46182-500-013
Joint, brake rod (Ref #23)
23
Part #46504-MT4-006
Cover, rr. *nha01m* (Ref #24)
24
Part #46550-MEC-000ZA
Stay, rr. (Ref #25)
25
Part #46551-MEC-000
Rubber, rr (Ref #26)
26
Part #46552-MEC-000
Bolt (6x20) (Ref #27)
27
Part #90097-MY6-880
Screw (5x10.5) (Ref #28)
28
Part #90114-MCH-000
Screw (5x10.5) (Ref #28)
28
Part #90114-MCH-000
Screw (5x10.5) (Ref #28)
28
Part #90114-MCH-000
Screw (5x10.5) (Ref #28)
28
Part #90114-MCH-000
Screw (4x12) (Ref #29)
29
Part #90116-MEC-006
Bolt, oil (10x22) (Ref #30)
30
Part #90145-MS9-612
Nut, special (8mm) (Ref #31)
31
Part #90315-MEC-006
Шайба (Ref #32)
32
Part #90545-300-000
Шайба (Ref #32)
32
Part #90545-300-000
Шайба (Ref #32)
32
Part #90545-300-000
Шайба (Ref #32)
32
Part #90545-300-000
Стопорное кольцо поршня (Ref #33)
33
Part #90651-MBG-006
Прокладка (Ref #34)
34
Part #91212-422-006
Прокладка (Ref #34)
34
Part #91212-422-006
Прокладка (Ref #34)
34
Part #91212-422-006
Прокладка (Ref #34)
34
Part #91212-422-006
Screw-washer (4x14) (Ref #35)
35
Part #93891-0401408
Screw-washer (Ref #36)
36
Part #93893-040-120-7
Screw-washer (Ref #36)
36
Part #93893-040-120-7
Screw-washer (Ref #36)
36
Part #93893-040-120-7
Screw-washer (Ref #36)
36
Part #93893-040-120-7
Гайка (Ref #37)
37
Part #94002-080-000-S
PIN (Ref #38)
38
Part #94201-20150
PIN (Ref #39)
39
Part #94305-20102
Pin d, joint (Ref #40)
40
Part #9501554000
Bolt (6x12) (Ref #41)
41
Part #90009-MF5-000
BOLT (Ref #42)
42
Part #95701-060-160-8
BOLT (Ref #43)
43
Part #96001-060-120-7
BOLT (Ref #44)
44
Part #96600-060-120-0
