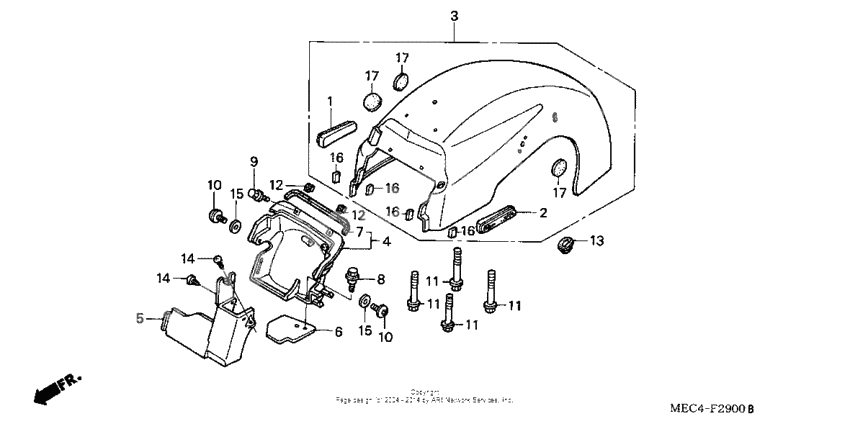

Rear fender
Rear fender
Reflector, r. rr. (Ref #1)
1
Part #33742-MEC-671
Reflector, l. rr. (Ref #2)
2
Part #33744-MEC-671
Fdr, rr. *r287m* (Ref #3)
3
Part #80110-MEC-A00ZC
Fdr, rr. *p44p* (Ref #3)
3
Part #80110-MEC-A00ZB
Fdr, rr. *nh1* (Ref #3)
3
Part #80110-MEC-A00ZA
Splash guard assy. (Ref #4)
4
Part #80125-MEC-000
Box, tool (Ref #5)
5
Part #80126-MEC-000
Plate, tool box (Ref #6)
6
Part #80127-MEC-000
Seal, r. luggage box (Ref #7)
7
Part #81252-GAM-000
Bolt, rr. fender (Ref #8)
8
Part #90003-GE0-000
Болт (Ref #9)
9
Part #90101-088-780
Bolt, special (5x14) (Ref #10)
10
Part #90118-MBW-A10
Bolt, special (5x14) (Ref #10)
10
Part #90118-MBW-A10
Bolt, special (5x14) (Ref #10)
10
Part #90118-MBW-A10
Bolt, special (5x14) (Ref #10)
10
Part #90118-MBW-A10
Nut, clip (5mm) (Ref #12)
12
Part #90312-MT3-000
Nut, clip (5mm) (Ref #12)
12
Part #90312-MT3-000
Nut, clip (5mm) (Ref #12)
12
Part #90312-MT3-000
Nut, clip (5mm) (Ref #12)
12
Part #90312-MT3-000
Grommet, rr. fender (Ref #13)
13
Part #90801-MEC-000
Болт (Ref #14)
14
Part #93903-24380
Болт (Ref #14)
14
Part #93903-24380
Болт (Ref #14)
14
Part #93903-24380
Болт (Ref #14)
14
Part #93903-24380
Шайба (Ref #15)
15
Part #94101-05700
Шайба (Ref #15)
15
Part #94101-05700
Шайба (Ref #15)
15
Part #94101-05700
Шайба (Ref #15)
15
Part #94101-05700
