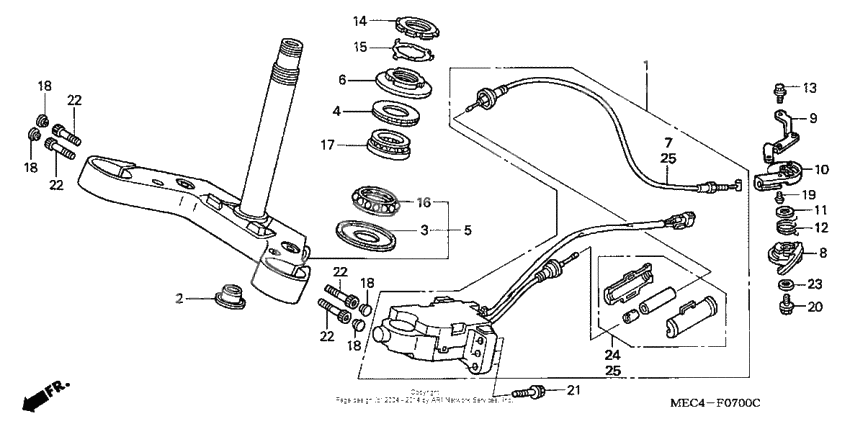

Steering stem
Steering stem
Lock, head pipe (Ref #1)
1
Part #35300-MEC-003
Cap, steering stem (Ref #2)
2
Part #53205-MEC-010
DUST SEAL (Ref #3)
3
Part #53214-MEC-003
УПЛОТНЕНИЕ ПЫЛЕНЕПРОНИЦАЕМОЕ (Ref #4)
4
Part #53214-MR7-003
Stem sub-assy., strg (Ref #5)
5
Part #53219-MEC-010
Thread (Ref #6)
6
Part #53220-MR7-000
Lever, handle lock (Ref #8)
8
Part #53611-MEC-670
STAY (Ref #9)
9
Part #53612-MEC-000
Корпус (Ref #10)
10
Part #53613-KV3-950
Washer, handle lock lever (Ref #11)
11
Part #53614-KV3-950
Пружина (Ref #12)
12
Part #53615-KV3-950
Bolt, flange, 5x10 (Ref #13)
13
Part #90002-GC3-000
Thread b (Ref #14)
14
Part #90302-MR7-000
Шайба (Ref #15)
15
Part #90506-MR7-000
Bearing, head pipe (Ref #16)
16
Part #91016-MEC-003
ПОДШИПНИК КАЧЕНИЯ (Ref #17)
17
Part #91016-MR7-003
Screw, pan, 3x6 (Ref #19)
19
Part #93500-030060G
Болт (Ref #20)
20
Part #90104-MAK-000
Bolt, flange, 8x30 (Ref #21)
21
Part #95801-080-300-0
Шайба (Ref #23)
23
Part #90437-GM0-000
Cable sub-assy., handle lock (Ref #25)
25
Part #53621-MEC-305
Cable sub-assy., handle lock (Ref #25)
25
Part #53621-MEC-305
Cable sub-assy., handle lock (Ref #25)
25
Part #53621-MEC-305
Cable sub-assy., handle lock (Ref #25)
25
Part #53621-MEC-305
