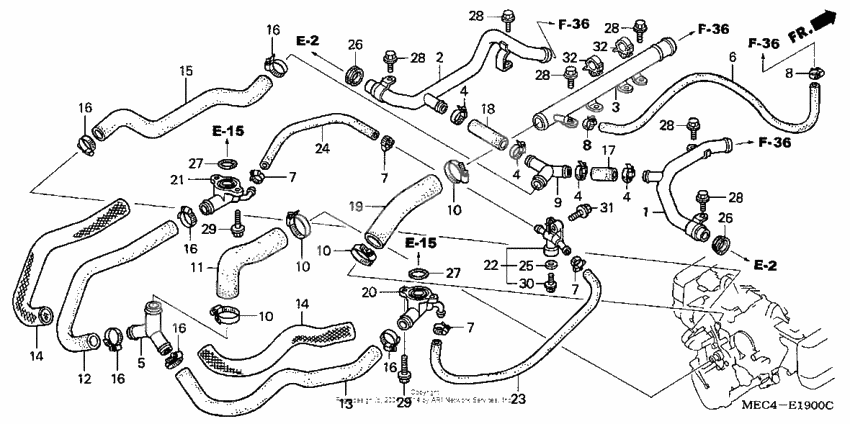

Water pipe
Water pipe
Pipe, r. water (Ref #1)
1
Part #19410-MEC-000
Pipe, l. water (Ref #2)
2
Part #19420-MEC-000
Pipe, water return (Ref #3)
3
Part #19430-MEC-010
Joint, three-way (Ref #5)
5
Part #19506-MCA-000
Hose a, breather (Ref #6)
6
Part #19506-MEC-000
Clamp, radiator hose (Ref #8)
8
Part #19507-MAT-000
Clamp, radiator hose (Ref #8)
8
Part #19507-MAT-000
Clamp, radiator hose (Ref #8)
8
Part #19507-MAT-000
Clamp, radiator hose (Ref #8)
8
Part #19507-MAT-000
Joint, three-way (Ref #9)
9
Part #19507-MCA-000
Hose a, water (Ref #11)
11
Part #19511-MEC-000
Hose b, water (Ref #12)
12
Part #19512-MEC-000
Hose c, water (Ref #13)
13
Part #19513-MEC-000
Guard, water hose (Ref #14)
14
Part #19515-MEC-000
Guard, water hose (Ref #14)
14
Part #19515-MEC-000
Guard, water hose (Ref #14)
14
Part #19515-MEC-000
Guard, water hose (Ref #14)
14
Part #19515-MEC-000
Hose a, bypass (Ref #15)
15
Part #19516-MEC-000
Hose b, bypass (Ref #17)
17
Part #19517-MEC-000
Hose c, bypass (Ref #18)
18
Part #19518-MEC-000
Шланг водный (Ref #19)
19
Part #19521-MEC-000
Joint, r. water hose (Ref #20)
20
Part #19710-MCA-010
Joint, l. water hose (Ref #21)
21
Part #19720-MEC-000
Joint, drain (Ref #22)
22
Part #19730-MEC-000
Hose a, drain (Ref #23)
23
Part #19732-MCA-010
Hose b, drain (Ref #24)
24
Part #19733-MEC-000
Шайба (Ref #25)
25
Part #90463-ML7-000
ДЕТАЛЬ (Ref #26)
26
Part #91316-MCA-A00
ДЕТАЛЬ (Ref #26)
26
Part #91316-MCA-A00
ДЕТАЛЬ (Ref #26)
26
Part #91316-MCA-A00
ДЕТАЛЬ (Ref #26)
26
Part #91316-MCA-A00
Прокладка (Ref #27)
27
Part #91317-MCA-A00
Прокладка (Ref #27)
27
Part #91317-MCA-A00
Прокладка (Ref #27)
27
Part #91317-MCA-A00
Прокладка (Ref #27)
27
Part #91317-MCA-A00
BOLT (Ref #29)
29
Part #95701-060-200-8
BOLT (Ref #29)
29
Part #95701-060-200-8
BOLT (Ref #29)
29
Part #95701-060-200-8
BOLT (Ref #29)
29
Part #95701-060-200-8
Bolt, special (6x17) (Ref #31)
31
Part #90085-MCZ-000
CLIP (Ref #32)
32
Part #53781-SE0-952
CLIP (Ref #32)
32
Part #53781-SE0-952
CLIP (Ref #32)
32
Part #53781-SE0-952
CLIP (Ref #32)
32
Part #53781-SE0-952
