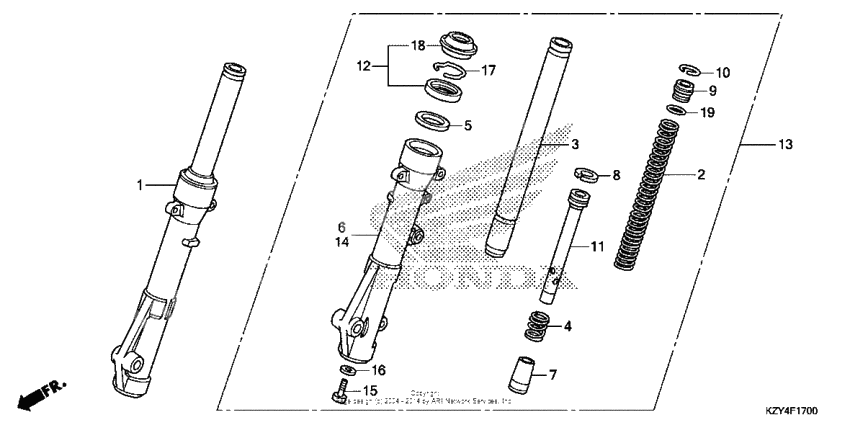

Front fork
Front fork
Fork assy., r. fr. (Ref #1)
1
Part #51400-KZY-305
Spring, fr. fork (Ref #2)
2
Part #51401-KWN-711
Pipe, fr. fork (Ref #3)
3
Part #51410-KWN-711
Пружина (Ref #4)
4
Part #51412-GC4-003
Ring, back-up (Ref #5)
5
Part #51412-KK4-003
Case, r. fr. (lower) (Ref #6)
6
Part #51420-KZY-911
Piece, oil lock (Ref #7)
7
Part #51432-KM7-910
Кольцо поршневое (Ref #8)
8
Part #51437-GS3-003
Пружина (Ref #9)
9
Part #51454-KWN-711
Кольцо стопорное (Ref #10)
10
Part #51456-355-003
PIPE,SEAT (Ref #11)
11
Part #51470-KWN-901
Seal set, fr. fork (Ref #12)
12
Part #51490-KRM-852
Fork assy., l. fr. (Ref #13)
13
Part #51500-KZY-305
Case, l. fr. (lower) (Ref #14)
14
Part #51520-KZY-911
Bolt, socket (8mm) (Ref #15)
15
Part #90116-383-721
Шайба (Ref #16)
16
Part #90544-283-000
Ring, oil seal stop (Ref #17)
17
Part #90601-354-000
DUST SEAL (Ref #18)
18
Part #91254-GAA-003
O RING (Ref #19)
19
Part #91356-GBB-003
