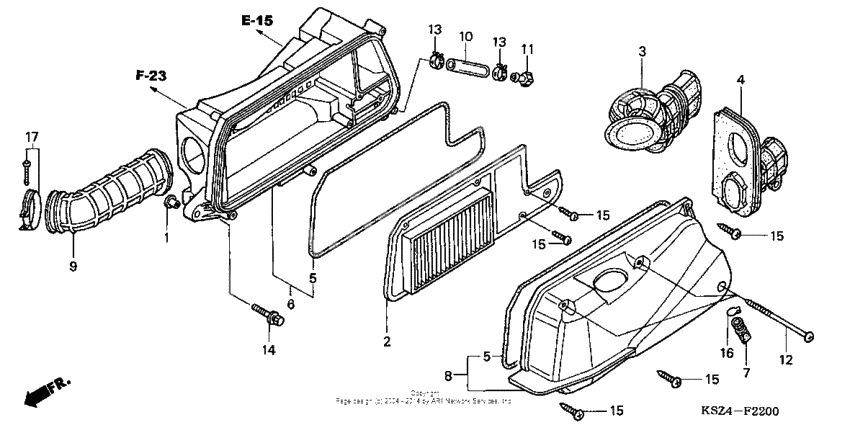

Воздушный фильтр
Воздушный фильтр
Collar, air cleaner setting (Ref #1)
1
Part #17208-GR1-010
Воздухоочиститель (Ref #2)
2
Part #17210-KFG-010
Duct a, air cleaner (Ref #3)
3
Part #17213-KPB-020
Duct b, air cleaner (Ref #4)
4
Part #17214-KPB-020
Seal, air cleaner (Ref #5)
5
Part #17218-KFG-000
Seal, air cleaner (Ref #5)
5
Part #17218-KFG-000
Seal, air cleaner (Ref #5)
5
Part #17218-KFG-000
Seal, air cleaner (Ref #5)
5
Part #17218-KFG-000
Case sub-assy. (Ref #6)
6
Part #17225-KFG-J02
TUBE (Ref #7)
7
Part #17234-KCW-871
Cvr sub, a/clnr (Ref #8)
8
Part #17235-KPB-020
TUBE (Ref #9)
9
Part #17254-KFG-000
Трубка дренажная (Ref #10)
10
Part #17261-KFG-J00
Plug, breather tube (Ref #11)
11
Part #17370-382-870
Screw, tap (5x65) (Ref #12)
12
Part #90135-KPB-000
Clamp, tube (d14.5) (Ref #13)
13
Part #91406-MS8-000
Clamp, tube (d14.5) (Ref #13)
13
Part #91406-MS8-000
Clamp, tube (d14.5) (Ref #13)
13
Part #91406-MS8-000
Clamp, tube (d14.5) (Ref #13)
13
Part #91406-MS8-000
Bolt-washer (6x30) (Ref #14)
14
Part #93404-0603000
Clip, tube (c12) (Ref #16)
16
Part #9500280000
Band, air cleaner connecting tube (54) (Ref #17)
17
Part #9501854250
