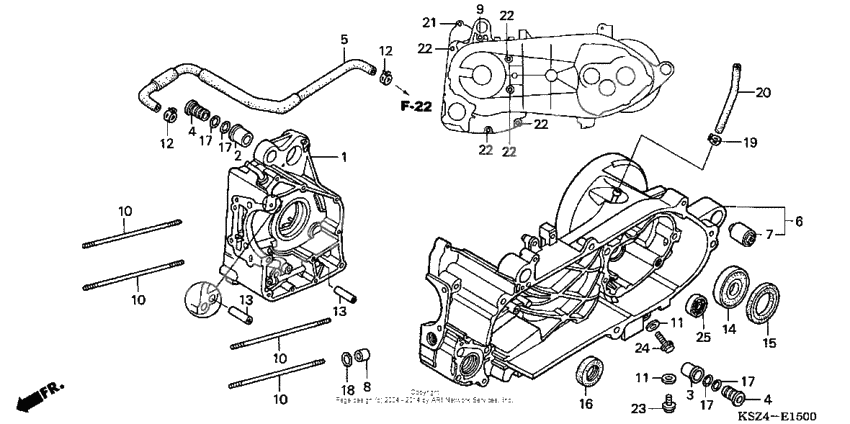

Картер
Картер
Crankcase, r. (Ref #1)
1
Part #11100-KFG-J00
Bush, r. eng hgr (Ref #2)
2
Part #11103-KJ9-750
Bush, l. eng hgr (Ref #3)
3
Part #11104-KJ9-751
Bush, engine hanger (Ref #4)
4
Part #11105-KAB-000
Bush, engine hanger (Ref #4)
4
Part #11105-KAB-000
Bush, engine hanger (Ref #4)
4
Part #11105-KAB-000
Bush, engine hanger (Ref #4)
4
Part #11105-KAB-000
Tube assy., breather (Ref #5)
5
Part #11150-KFG-000
Crankcase, l. (Ref #6)
6
Part #11200-KPB-000
Bush, shock absorber (Ref #7)
7
Part #11203-KAB-000
Collar (18mm) (Ref #8)
8
Part #15326-KT7-000
Washer, sealing, 8mm (Ref #11)
11
Part #90474-333-000
Washer, sealing, 8mm (Ref #11)
11
Part #90474-333-000
Washer, sealing, 8mm (Ref #11)
11
Part #90474-333-000
Washer, sealing, 8mm (Ref #11)
11
Part #90474-333-000
CLAMP (Ref #12)
12
Part #90682-SA0-671
CLAMP (Ref #12)
12
Part #90682-SA0-671
CLAMP (Ref #12)
12
Part #90682-SA0-671
CLAMP (Ref #12)
12
Part #90682-SA0-671
Dowel pin, 10x28 (Ref #13)
13
Part #90701-399-000
Dowel pin, 10x28 (Ref #13)
13
Part #90701-399-000
Dowel pin, 10x28 (Ref #13)
13
Part #90701-399-000
Dowel pin, 10x28 (Ref #13)
13
Part #90701-399-000
Bearing (6205-2nsg) (Ref #14)
14
Part #91006-KAB-004
Oil seal (34x52x5) (Ref #15)
15
Part #91253-KM1-003
Oil seal (27.9x40x8) (Ref #16)
16
Part #91261-KM1-003
Прокладка (Ref #18)
18
Part #91306-KK4-003
CLAMP (Ref #19)
19
Part #95002-410-000-8
Bulk hose (5.5x3000) (Ref #20)
20
Part #95005-550-0320M
Bolt, flange, 6x40 (Ref #21)
21
Part #95701-0604000
Bolt, flange, 8x12 (Ref #23)
23
Part #95701-0801200
BOLT (Ref #24)
24
Part #95701-080-250-0
Bearing, radial ball, 6302 (Ref #25)
25
Part #96100-6302000
-
-
Цена: 420.00 р.
Доступно: 0
-
