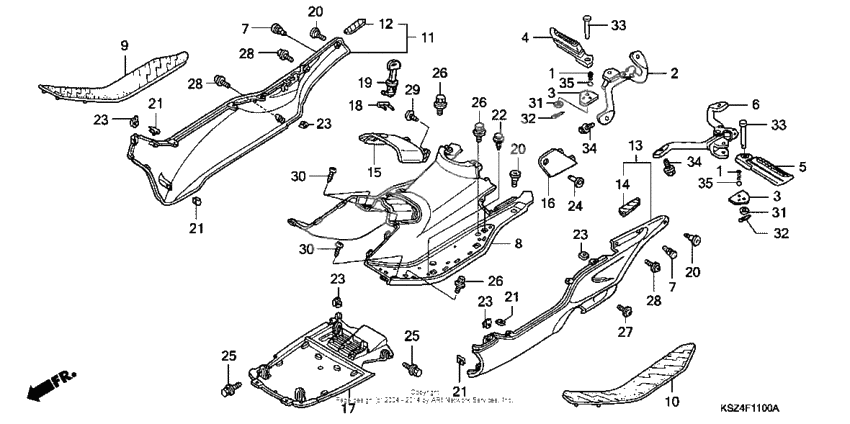

Floor step + side skirt
Floor step + side skirt
Пружина (Ref #1)
1
Part #28333-300-000
Пружина (Ref #1)
1
Part #28333-300-000
Пружина (Ref #1)
1
Part #28333-300-000
Пружина (Ref #1)
1
Part #28333-300-000
Bracket, r (Ref #2)
2
Part #50660-KPB-000
PLATE (Ref #3)
3
Part #50718-KPB-000
PLATE (Ref #3)
3
Part #50718-KPB-000
PLATE (Ref #3)
3
Part #50718-KPB-000
PLATE (Ref #3)
3
Part #50718-KPB-000
Arm, r. pillion step (Ref #4)
4
Part #50720-KPB-000
Arm, l. pillion step (Ref #5)
5
Part #50730-KPB-000
Bracket, l (Ref #6)
6
Part #50760-KPB-000
RUBBER (Ref #7)
7
Part #53134-KG7-000
RUBBER (Ref #7)
7
Part #53134-KG7-000
RUBBER (Ref #7)
7
Part #53134-KG7-000
RUBBER (Ref #7)
7
Part #53134-KG7-000
Step, floor *nh1* (Ref #8)
8
Part #64320-KPB-010ZB
Floor mat, r. *nh1* (Ref #9)
9
Part #64325-KPB-000ZA
Floor mat, l. *nh1* (Ref #10)
10
Part #64326-KPB-000ZA
Skirt, r. *pb215c* (Ref #11)
11
Part #64330-KPB-000YB
Plate, r. *nh1* (Ref #12)
12
Part #64335-KPB-000ZE
Skirt, l. *pb215c* (Ref #13)
13
Part #64340-KPB-000YB
Plate, l. *nh1* (Ref #14)
14
Part #64345-KPB-000ZE
Lid, fuel *nh1* (Ref #15)
15
Part #64451-KPB-000ZB
Lid *nh1* (Ref #16)
16
Part #64461-KPB-000ZB
Cover (lower) *nh1* (Ref #17)
17
Part #64471-KPB-000ZG
Пружина (Ref #18)
18
Part #75581-673-000
Lock assy., fuel lid (Ref #19)
19
Part #77232-GBL-772
CLIP (Ref #22)
22
Part #90601-PV3-003
Клипса крепления бампера (Ref #24)
24
Part #90683-GAZ-003
Bolt-washer (Ref #25)
25
Part #93404-060-120-7
Bolt-washer (Ref #25)
25
Part #93404-060-120-7
Bolt-washer (Ref #25)
25
Part #93404-060-120-7
Bolt-washer (Ref #25)
25
Part #93404-060-120-7
Screw-washer (Ref #27)
27
Part #93891-050-120-7
Болт (Ref #29)
29
Part #93903-34310
Болт (Ref #30)
30
Part #93903-34480
Болт (Ref #30)
30
Part #93903-34480
Болт (Ref #30)
30
Part #93903-34480
Болт (Ref #30)
30
Part #93903-34480
Шайба (Ref #31)
31
Part #94101-06800
Шайба (Ref #31)
31
Part #94101-06800
Шайба (Ref #31)
31
Part #94101-06800
Шайба (Ref #31)
31
Part #94101-06800
PIN (Ref #32)
32
Part #94201-16120
PIN (Ref #32)
32
Part #94201-16120
PIN (Ref #32)
32
Part #94201-16120
PIN (Ref #32)
32
Part #94201-16120
Pin b (Ref #33)
33
Part #9501582000
Pin b (Ref #33)
33
Part #9501582000
Pin b (Ref #33)
33
Part #9501582000
Pin b (Ref #33)
33
Part #9501582000
Bolt, flange, 8x20 (Ref #34)
34
Part #95701-080-200-0
Bolt, flange, 8x20 (Ref #34)
34
Part #95701-080-200-0
Bolt, flange, 8x20 (Ref #34)
34
Part #95701-080-200-0
Bolt, flange, 8x20 (Ref #34)
34
Part #95701-080-200-0
Ball (Ref #35)
35
Part #96211-08000
Ball (Ref #35)
35
Part #96211-08000
Ball (Ref #35)
35
Part #96211-08000
Ball (Ref #35)
35
Part #96211-08000
