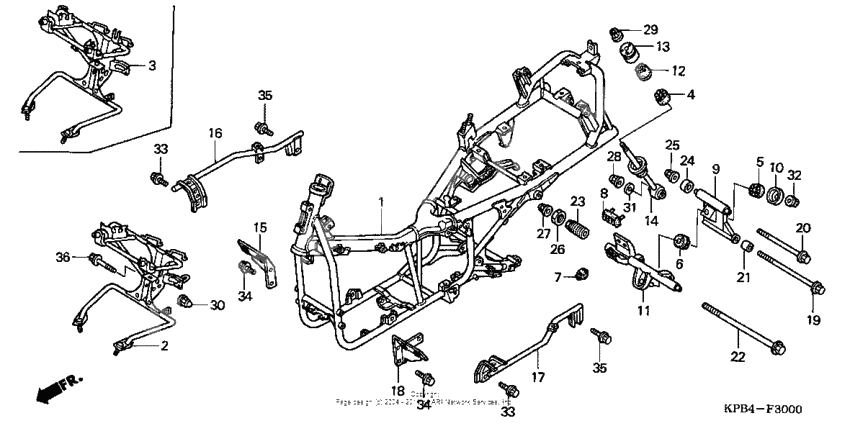

Frame
Frame
Frame (Ref #1)
1
Part #50100-KPB-770
Stay,fr cover (Ref #2)
2
Part #50310-KPB-J10
Rubber, eng hgr stpr (Ref #4)
4
Part #50352-GA7-000
Rubber, eng hgr stpr (Ref #5)
5
Part #50352-GE0-000
Rubber, eng hgr stpr (Ref #6)
6
Part #50352-KJ9-000
Rubber, stopper (Ref #7)
7
Part #50352-KM1-000
Rubber, stopper (Ref #8)
8
Part #50352-KS4-000
Bracket sub-assy. b (Ref #9)
9
Part #50355-KPB-000
Cap, stopper rubber (Ref #10)
10
Part #50356-KM1-000
Cap, stopper rubber (Ref #10)
10
Part #50356-KM1-000
Cap, stopper rubber (Ref #10)
10
Part #50356-KM1-000
Cap, stopper rubber (Ref #10)
10
Part #50356-KM1-000
Bracket sub-assy. a (Ref #11)
11
Part #50365-KPB-000
Rubber b, stopper (Ref #12)
12
Part #50373-KAB-000
Stopper, tension rod (Ref #13)
13
Part #50374-KAB-000
Rod, tension (Ref #14)
14
Part #50380-KFG-000
Stay, r. cover (Ref #15)
15
Part #50605-KPB-000
Stay, r. floor (Ref #16)
16
Part #50610-KPB-000
Stay, l. floor (Ref #17)
17
Part #50620-KPB-770
Stay, l. cover (Ref #18)
18
Part #50655-KPB-000
Bolt, flg (12x290) (Ref #19)
19
Part #90106-KFG-000
Bolt, flg (10x180) (Ref #20)
20
Part #90106-KJ9-000
Collar, eng hgr bolt (Ref #21)
21
Part #90107-KAB-770
Bolt, flg (12x423) (Ref #22)
22
Part #90108-KPB-000
Bolt, flg (12x423) (Ref #22)
22
Part #90108-KPB-000
Bolt, flg (12x423) (Ref #22)
22
Part #90108-KPB-000
Bolt, flg (12x423) (Ref #22)
22
Part #90108-KPB-000
Гайка (Ref #23)
23
Part #90121-KPB-000
Colr, muffler mount (Ref #24)
24
Part #90122-141-000
Nut, u flange (10mm) (Ref #25)
25
Part #90304-GBL-003
Nut c, steering stem (Ref #26)
26
Part #90304-GB4-680
Nut, hex. u (12mm) (Ref #27)
27
Part #90306-KBP-901
Nut, flange, 12mm (Ref #28)
28
Part #90306-KF0-003
Nut, flange (self-lock) (m8x1.25) (Ref #29)
29
Part #90309-428-731
Nut, cap, 8mm (Ref #30)
30
Part #90443-107-000
Nut, cap, 8mm (Ref #30)
30
Part #90443-107-000
Nut, cap, 8mm (Ref #30)
30
Part #90443-107-000
Nut, cap, 8mm (Ref #30)
30
Part #90443-107-000
Washer, tension rod (Ref #31)
31
Part #90501-KAB-000
Nut-washer (Ref #32)
32
Part #94070-08080
Nut-washer (Ref #32)
32
Part #94070-08080
Nut-washer (Ref #32)
32
Part #94070-08080
Nut-washer (Ref #32)
32
Part #94070-08080
Болт (Ref #36)
36
Part #95801-0804000
