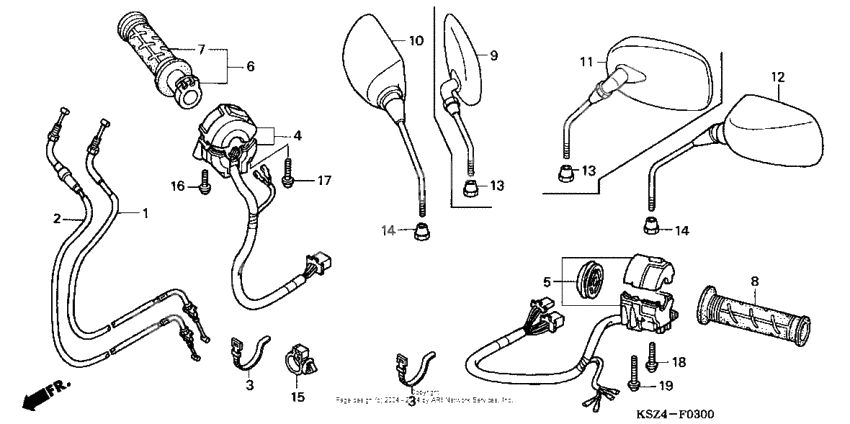

Switch + cable
Switch + cable
Cable b, throttle (Ref #1)
1
Part #17920-KPB-010
Cable a, throttle (Ref #2)
2
Part #17910-KPB-010
Switch assy (Ref #4)
4
Part #35130-KSZ-774
Switch, turn signal (Ref #5)
5
Part #35200-KSZ-772
Зажим дросселя (Ref #6)
6
Part #53140-KPB-000
Grip, r. handle (Ref #7)
7
Part #53165-MY9-890
Mirror, r. (Ref #8)
8
Part #88210-KPB-003
Mirror, l. (Ref #12)
12
Part #88220-KPB-003
Nut, lock (Ref #14)
14
Part #90314-443-761
Nut, lock (Ref #14)
14
Part #90314-443-761
Nut, lock (Ref #14)
14
Part #90314-443-761
Nut, lock (Ref #14)
14
Part #90314-443-761
CLAMP (Ref #15)
15
Part #90652-HC4-003
Screw-washer (5x20) (Ref #16)
16
Part #93892-0502007
Screw-washer (5x25) (Ref #17)
17
Part #93892-0502507
Screw-washer (5x35) (Ref #18)
18
Part #93892-0503507
Screw-washer (5x45) (Ref #19)
19
Part #93892-0504507
