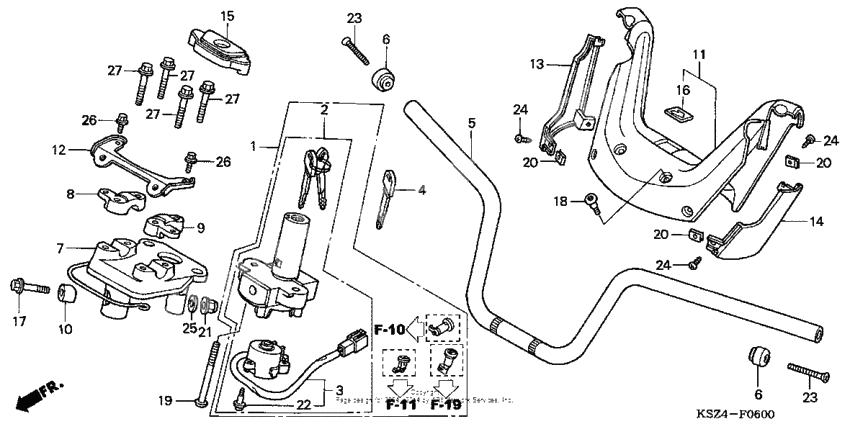

Handlebar + handle cover (nss250/nss250a)
Handlebar + handle cover (nss250/nss250a)
Отсутствующе (Ref #1)
1
Part #35010-KSZ-770
Switch assy., combination & lo (Ref #2)
2
Part #35100-KSZ-770
Base, contact (Ref #3)
3
Part #35101-KPB-J40
Key, blank (Ref #4)
4
Part #35121-KPB-007
HANDLEBAR (Ref #5)
5
Part #53100-KPB-010
Weight, handle (Ref #6)
6
Part #53104-KY6-010
Weight, handle (Ref #6)
6
Part #53104-KY6-010
Weight, handle (Ref #6)
6
Part #53104-KY6-010
Weight, handle (Ref #6)
6
Part #53104-KY6-010
Post, handle (Ref #7)
7
Part #53110-KPB-J40
Holder, r. handle (Ref #8)
8
Part #53111-HC3-000
Holder, l. handle (Ref #9)
9
Part #53121-HC3-000
Colr, handle setting (Ref #10)
10
Part #53125-GN5-900
Cover, handle *nh1* (Ref #11)
11
Part #53250-KPB-000ZB
Stay, handle cover (Ref #12)
12
Part #53255-KPB-000
Cvr, r. handle *nh1* (Ref #13)
13
Part #53261-KPB-000ZB
Cvr, l. handle *nh1* (Ref #14)
14
Part #53271-KPB-000ZB
Cover *nh1* (Ref #15)
15
Part #53281-KPB-640ZB
Emblem, wing mark (Ref #16)
16
Part #86150-MN8-300
Bolt, flange, 10x50 (Ref #17)
17
Part #90106-GN5-900
Screw, special (6mm) (Ref #18)
18
Part #90106-KCZ-000
Bolt, one-way (8x58) (Ref #19)
19
Part #90164-KPB-000
Nut, u, 10mm (Ref #21)
21
Part #90304-GE8-003
Screw, tap (3x16) (Ref #22)
22
Part #91059-KY2-711
Screw, oval (6x35) (Ref #23)
23
Part #90107-MCT-771
Screw, oval (6x35) (Ref #23)
23
Part #90107-MCT-771
Screw, oval (6x35) (Ref #23)
23
Part #90107-MCT-771
Screw, oval (6x35) (Ref #23)
23
Part #90107-MCT-771
Шайба (Ref #25)
25
Part #94101-10800
BOLT (Ref #26)
26
Part #95701-060-100-0
BOLT (Ref #26)
26
Part #95701-060-100-0
BOLT (Ref #26)
26
Part #95701-060-100-0
BOLT (Ref #26)
26
Part #95701-060-100-0
