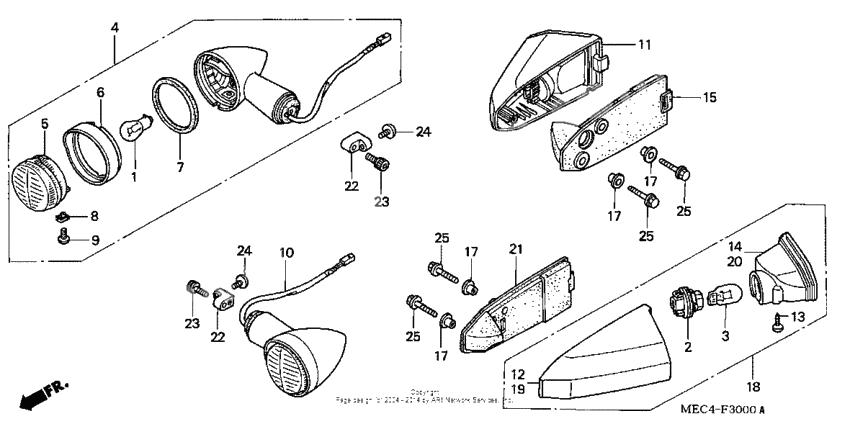

Front turn signal
Front turn signal
Bulb (Ref #1)
1
Part #33301-S04-004
ПАТРОН (Ref #2)
2
Part #33303-SAA-003
Лампа (Ref #3)
3
Part #33303-S2R-003
Turn signal assy. (Ref #4)
4
Part #33400-MEC-013
Lens, turn signal (Ref #5)
5
Part #33401-MEC-003
Rim, turn signal (Ref #6)
6
Part #33402-MEC-003
Прокладка (Ref #7)
7
Part #33407-MEC-003
Nut, clip (Ref #8)
8
Part #33408-MBA-611
Bolt, special (4x8) (Ref #9)
9
Part #33412-MEC-003
Turn signal assy. (Ref #10)
10
Part #33450-MEC-013
Turn signal assy. (Ref #11)
11
Part #33600-MEC-013
Base, r. turn signal (Ref #12)
12
Part #33605-MEC-003
Screw (4x14) (Ref #13)
13
Part #33126-MEC-003
Lens, r. turn signal (Ref #14)
14
Part #33610-MEC-013
Rubber, r. rr. (Ref #15)
15
Part #33611-MEC-000
Turn signal assy. (Ref #18)
18
Part #33650-MEC-013
Base, l. turn signal (Ref #19)
19
Part #33655-MEC-003
Lens, l. turn signal (Ref #20)
20
Part #33660-MEC-013
Rubber, l. rr. (Ref #21)
21
Part #33661-MEC-000
Stay, fr. (Ref #22)
22
Part #53277-MEC-000
Stay, fr. (Ref #22)
22
Part #53277-MEC-000
Stay, fr. (Ref #22)
22
Part #53277-MEC-000
Stay, fr. (Ref #22)
22
Part #53277-MEC-000
Bolt, socket (6x18) (Ref #23)
23
Part #90004-KV8-000
Bolt, socket (6x18) (Ref #23)
23
Part #90004-KV8-000
Bolt, socket (6x18) (Ref #23)
23
Part #90004-KV8-000
Bolt, socket (6x18) (Ref #23)
23
Part #90004-KV8-000
Screw, pan (6x12) (Ref #24)
24
Part #90108-MCH-000
Screw, pan (6x12) (Ref #24)
24
Part #90108-MCH-000
Screw, pan (6x12) (Ref #24)
24
Part #90108-MCH-000
Screw, pan (6x12) (Ref #24)
24
Part #90108-MCH-000
