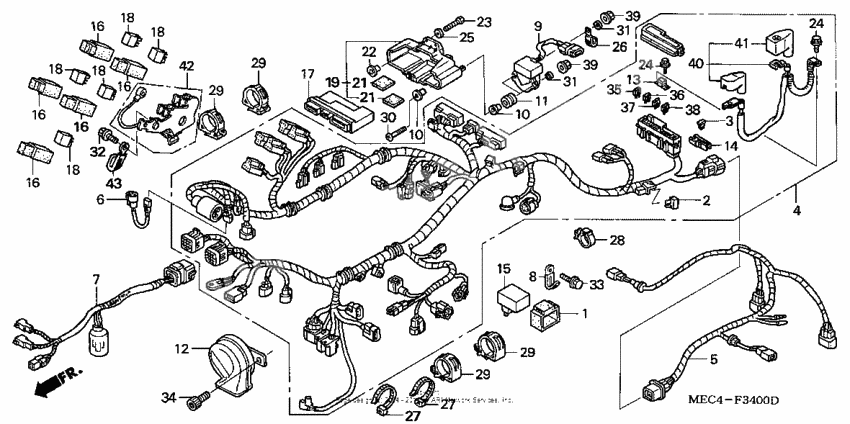

Wire harness
Wire harness
CUSHION (Ref #1)
1
Part #30401-KF0-010
Rectifier assy., silicon (shindengen) (Ref #2)
2
Part #31700-124-008
Diode assy., three way (sumitomo) (Ref #3)
3
Part #31730-MAS-601
Wire harness (Ref #4)
4
Part #32100-MEC-030
Sub-harness, rr. (Ref #5)
5
Part #32102-MEC-010
Sub-harness (Ref #6)
6
Part #32111-MEC-000
Sub-harness, fr. (Ref #7)
7
Part #32130-MEC-020
Clip, sub cord (Ref #8)
8
Part #32901-MA1-000
Sensor, bank angle (Ref #9)
9
Part #35161-MEC-003
COLLAR (Ref #10)
10
Part #35162-MN5-003
COLLAR (Ref #10)
10
Part #35162-MN5-003
COLLAR (Ref #10)
10
Part #35162-MN5-003
COLLAR (Ref #10)
10
Part #35162-MN5-003
GROMMET (Ref #11)
11
Part #35163-MN5-003
Звуковой сигнал (Ref #12)
12
Part #38120-MEC-000
Fuse (Ref #13)
13
Part #38218-SM4-003
Съёмник мини предохранитель (Ref #14)
14
Part #38235-S04-003
Relay (Ref #15)
15
Part #38301-MEC-671
Pgm-fi unit (Ref #17)
17
Part #38770-MEC-674
Box assy., ecu (Ref #19)
19
Part #50324-MEC-000
Sponge, rubber (Ref #21)
21
Part #50322-MEC-000
Sponge, rubber (Ref #21)
21
Part #50322-MEC-000
Sponge, rubber (Ref #21)
21
Part #50322-MEC-000
Sponge, rubber (Ref #21)
21
Part #50322-MEC-000
Colr, cover mounting (Ref #22)
22
Part #83505-MN0-000
Bolt (5x28) (Ref #23)
23
Part #90023-MM5-000
BOLT (Ref #24)
24
Part #90114-SG0-003
BOLT (Ref #24)
24
Part #90114-SG0-003
BOLT (Ref #24)
24
Part #90114-SG0-003
BOLT (Ref #24)
24
Part #90114-SG0-003
Washer, stopper (Ref #25)
25
Part #90483-041-000
Clip, wire, 4x50 (Ref #26)
26
Part #9459145000
Band.harness (Ref #27)
27
Part #90650-MA6-720
Band.harness (Ref #27)
27
Part #90650-MA6-720
Band.harness (Ref #27)
27
Part #90650-MA6-720
Band.harness (Ref #27)
27
Part #90650-MA6-720
Clip, cable, 20mm (Ref #28)
28
Part #90690-GHB-661
Screw, pan (4x35) (Ref #30)
30
Part #93500-040350G
Шайба (Ref #31)
31
Part #94101-04800
Шайба (Ref #31)
31
Part #94101-04800
Шайба (Ref #31)
31
Part #94101-04800
Шайба (Ref #31)
31
Part #94101-04800
Bolt, flange, 6x18 (Ref #32)
32
Part #95701-0601800
BOLT (Ref #33)
33
Part #95701-060-120-8
Bolt, socket (8x16) (Ref #34)
34
Part #96600-0801607
Fuse, mini (5a) (Ref #35)
35
Part #9820040500
Fuse (Ref #36)
36
Part #98200-41000
Fuse (Ref #37)
37
Part #98200-42000
ПРЕДОХРАНИТЕЛЬ 30A (Ref #38)
38
Part #98200-43000
Гайка (Ref #39)
39
Part #94050-04070
Гайка (Ref #39)
39
Part #94050-04070
Гайка (Ref #39)
39
Part #94050-04070
Гайка (Ref #39)
39
Part #94050-04070
Cable (Ref #40)
40
Part #32401-MEC-020
COVER (Ref #41)
41
Part #32405-MEC-000
Stay, power relay (Ref #42)
42
Part #50320-MEC-000
Clip, 2x60 (Ref #43)
43
Part #91410-679-000
