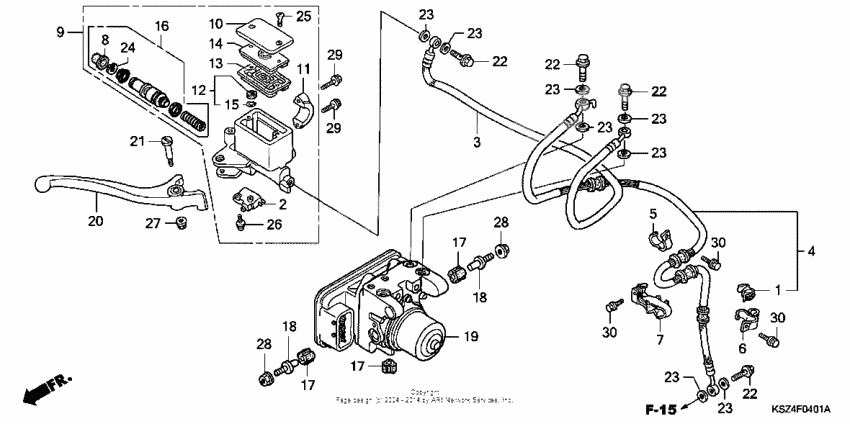

Front brake master cylinder (abs)
Front brake master cylinder (abs)
Clamp, pipe (Ref #1)
1
Part #17368-KV7-671
Switch, fr. stop (Ref #2)
2
Part #35340-MA5-671
Hose a, fr. brake (Ref #3)
3
Part #45125-KPB-751
Hose b, fr. brake (Ref #4)
4
Part #45126-KPB-752
Clip a, brake hose (Ref #5)
5
Part #45127-KFG-000
Clip, brake hose (Ref #6)
6
Part #45130-KPB-750
Clamp, brake hose (Ref #7)
7
Part #45135-KPB-750
Ботинок (Ref #8)
8
Part #45504-410-003
M/cyl sub-assy, fr. (Ref #9)
9
Part #45510-KPB-641
Cap, master cylinder (Ref #10)
10
Part #45513-HR0-305
HOLDER (Ref #11)
11
Part #45517-166-006
Сепаратор (Ref #12)
12
Part #45518-KY1-701
DIAPHRAGM (Ref #13)
13
Part #45520-MG7-006
Пластина (Ref #14)
14
Part #45521-HA2-006
CLIP (Ref #15)
15
Part #45523-KY1-701
Master cylinder set (Ref #16)
16
Part #45530-471-831
BOLT (Ref #18)
18
Part #57102-S2A-003
BOLT (Ref #18)
18
Part #57102-S2A-003
BOLT (Ref #18)
18
Part #57102-S2A-003
BOLT (Ref #18)
18
Part #57102-S2A-003
Modulator assy., abs (Ref #19)
19
Part #57110-KPB-754
Lever, r. handle (Ref #20)
20
Part #53175-MK7-671
Bolt, handle lever (Ref #21)
21
Part #90114-KT7-006
Circlip (Ref #24)
24
Part #90651-MA5-671
Болт (Ref #25)
25
Part #93600-040120G
Screw-washer (Ref #26)
26
Part #93893-040-120-7
Гайка (Ref #27)
27
Part #94050-06000
Nut-washer (Ref #28)
28
Part #94071-06080
Nut-washer (Ref #28)
28
Part #94071-06080
Nut-washer (Ref #28)
28
Part #94071-06080
Nut-washer (Ref #28)
28
Part #94071-06080
Болт (Ref #29)
29
Part #96001-0602207
Болт (Ref #29)
29
Part #96001-0602207
Болт (Ref #29)
29
Part #96001-0602207
Болт (Ref #29)
29
Part #96001-0602207
