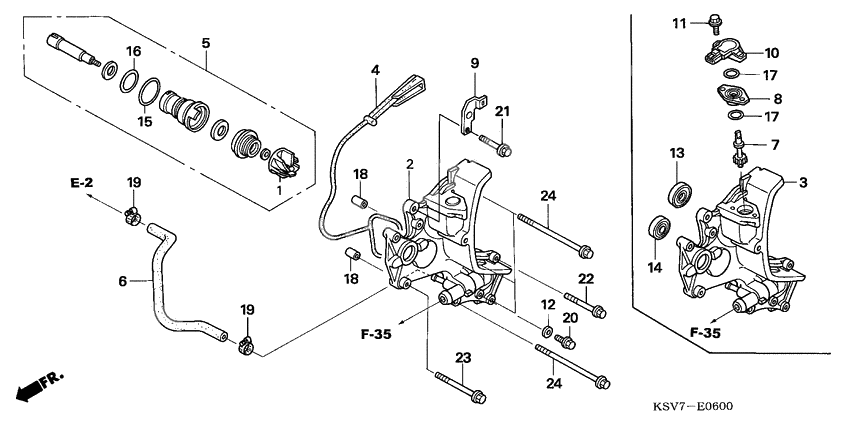

Водяной насос

Водяной насос

Водяной насос
Крыльчатка водной помпы (Ref #1)
1
Part #19215-KAB-000
Cover comp. (Ref #2)
2
Part #19220-KSV-J21
Прокладка (Ref #4)
4
Part #19225-KSV-J10
Shaft comp. (Ref #5)
5
Part #19250-KSV-J10
HOSE (Ref #6)
6
Part #19527-KSV-J10
HOLDER (Ref #9)
9
Part #31307-KSV-J10
Washer a, 6mm (Ref #12)
12
Part #90478-700-000
Прокладка (Ref #15)
15
Part #91301-KE1-004
Прокладка (Ref #16)
16
Part #91302-MB0-013
Dowel pin (Ref #18)
18
Part #94301-08140
Dowel pin (Ref #18)
18
Part #94301-08140
Dowel pin (Ref #18)
18
Part #94301-08140
Dowel pin (Ref #18)
18
Part #94301-08140
CLAMP (Ref #19)
19
Part #95002-412-500-8
CLAMP (Ref #19)
19
Part #95002-412-500-8
CLAMP (Ref #19)
19
Part #95002-412-500-8
CLAMP (Ref #19)
19
Part #95002-412-500-8
BOLT (Ref #20)
20
Part #95701-060-120-0
Bolt, flange, 6x32 (Ref #21)
21
Part #95701-0603200
Bolt, flange, 6x40 (Ref #22)
22
Part #95701-0604000
Bolt, flange, 6x50 (Ref #23)
23
Part #95701-060-500-0
Bolt, flange, 6x95 (Ref #24)
24
Part #95701-0609500
Bolt, flange, 6x95 (Ref #24)
24
Part #95701-0609500
Bolt, flange, 6x95 (Ref #24)
24
Part #95701-0609500
Bolt, flange, 6x95 (Ref #24)
24
Part #95701-0609500
+ -
