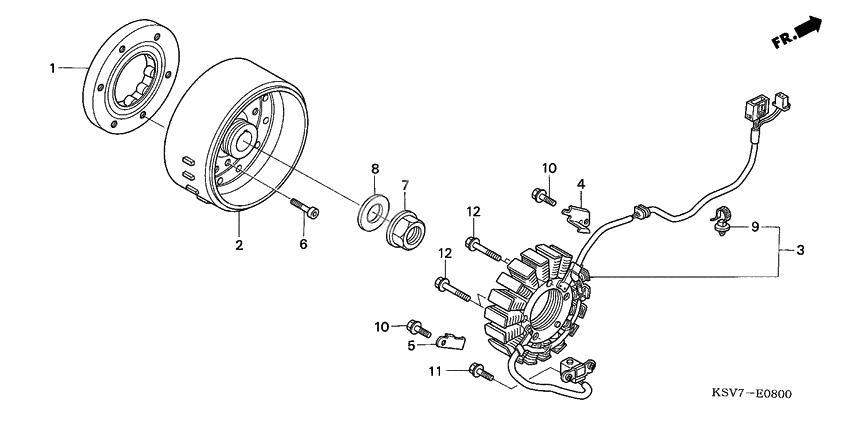

Generators
Generators
Clutch outer (Ref #1)
1
Part #28125-HN5-671
Flywheel comp. (Ref #2)
2
Part #31110-KSV-J11
Stator comp (Ref #3)
3
Part #31120-KSV-J12
Clamper (Ref #4)
4
Part #32961-KSV-J10
Clamper (Ref #5)
5
Part #32962-KSV-J10
Bolt, socket (6mm) (Ref #6)
6
Part #90002-HN5-670
Гайка (Ref #7)
7
Part #90201-KSV-J10
Шайба (Ref #8)
8
Part #90501-MG5-670
CLIP (Ref #9)
9
Part #91540-S30-003
BOLT (Ref #10)
10
Part #96001-060-120-0
BOLT (Ref #10)
10
Part #96001-060-120-0
BOLT (Ref #10)
10
Part #96001-060-120-0
BOLT (Ref #10)
10
Part #96001-060-120-0
BOLT (Ref #11)
11
Part #96001-060-160-0
Bolt, flange, 6x32 (Ref #12)
12
Part #96001-0603200
Bolt, flange, 6x32 (Ref #12)
12
Part #96001-0603200
Bolt, flange, 6x32 (Ref #12)
12
Part #96001-0603200
Bolt, flange, 6x32 (Ref #12)
12
Part #96001-0603200
