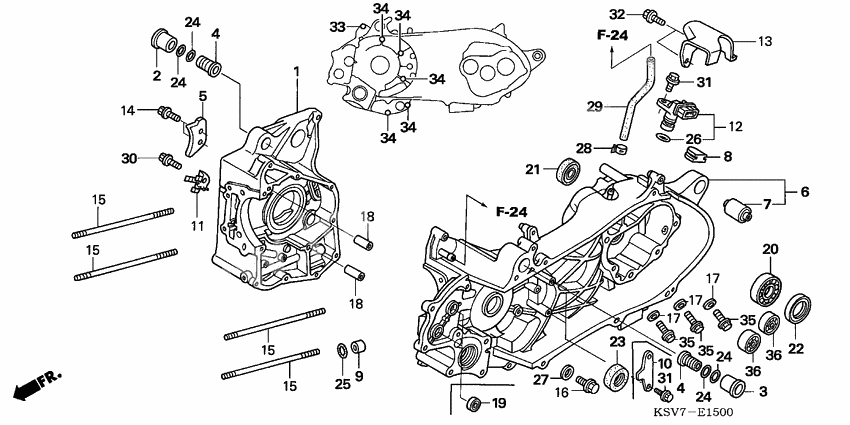

Картер
Картер
Crankcase comp. (Ref #1)
1
Part #11100-KSV-J11
Втулка (Ref #2)
2
Part #11103-KSV-J30
Втулка (Ref #3)
3
Part #11104-KSV-J30
Втулка (Ref #4)
4
Part #11105-KSV-J30
Втулка (Ref #4)
4
Part #11105-KSV-J30
Втулка (Ref #4)
4
Part #11105-KSV-J30
Втулка (Ref #4)
4
Part #11105-KSV-J30
PLATE (Ref #5)
5
Part #11131-KSV-J10
Crankcase comp. (Ref #6)
6
Part #11200-KSV-D00
Bush, shock absorber (Ref #7)
7
Part #11203-KAB-000
GROMMET (Ref #8)
8
Part #11241-KSV-J20
Collar (18mm) (Ref #9)
9
Part #15326-KT7-000
Guide (Ref #11)
11
Part #28115-KSV-J10
Pick up assy. (Ref #12)
12
Part #28820-PPW-013
PROTECTOR (Ref #13)
13
Part #32112-KSV-D00
Bolt, flange, 6x16 (Ref #14)
14
Part #90003-883-000
ПРОБКА СЛИВНАЯ (Ref #16)
16
Part #90131-896-650
Dowel pin, 10x28 (Ref #18)
18
Part #90701-399-000
Dowel pin, 10x28 (Ref #18)
18
Part #90701-399-000
Dowel pin, 10x28 (Ref #18)
18
Part #90701-399-000
Dowel pin, 10x28 (Ref #18)
18
Part #90701-399-000
Bearing (6205-2nsg) (Ref #20)
20
Part #91006-KAB-004
DUST SEAL (Ref #21)
21
Part #91251-KSV-J11
Oil seal (34x52x5) (Ref #22)
22
Part #91253-KM1-003
Сальник (Ref #23)
23
Part #91261-KSV-J12
Прокладка (Ref #25)
25
Part #91306-KK4-003
Прокладка (Ref #26)
26
Part #91309-PX4-003
Шайба (Ref #27)
27
Part #94109-12000
CLAMP (Ref #28)
28
Part #95002-410-000-8
Tube,5.5x190 (Ref #29)
29
Part #95005-551-902-0
BOLT (Ref #30)
30
Part #95701-060-140-0
BOLT (Ref #31)
31
Part #95701-060-160-0
BOLT (Ref #31)
31
Part #95701-060-160-0
BOLT (Ref #31)
31
Part #95701-060-160-0
BOLT (Ref #31)
31
Part #95701-060-160-0
BOLT (Ref #32)
32
Part #95701-060-160-7
Bolt, flange, 6x40 (Ref #33)
33
Part #95701-0604000
Bearing, radial ball, 6302 (Ref #36)
36
Part #96100-6302000
Bearing, radial ball, 6302 (Ref #36)
36
Part #96100-6302000
Bearing, radial ball, 6302 (Ref #36)
36
Part #96100-6302000
Bearing, radial ball, 6302 (Ref #36)
36
Part #96100-6302000
-
1690131-883-000
Bolt, drain plug, 12x15
1Replaced by 90131-896-650 Доступно: Нет в наличии
-
-
Цена: 420.00 р.
Доступно: 0
-
