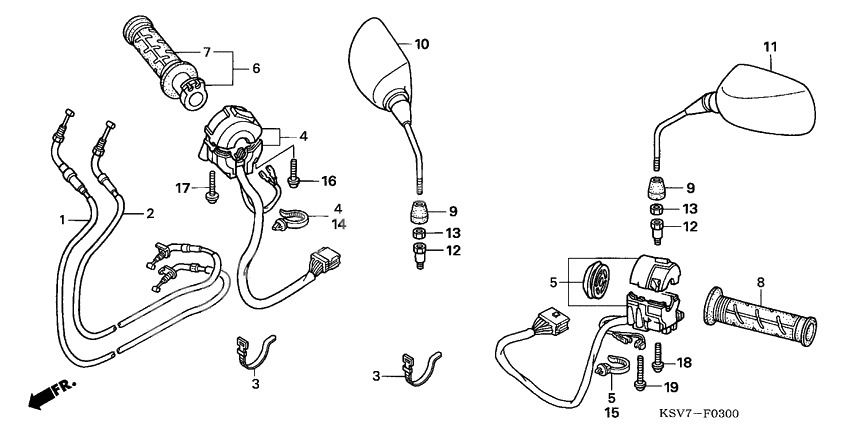

Switch/cable/mirror NSS250X
Switch/cable/mirror NSS250X
Cable comp. a (Ref #1)
1
Part #17910-KSV-J01
Cable comp. b (Ref #2)
2
Part #17920-KSV-J01
Band b1, wire (Ref #3)
3
Part #32161-404-000
Band b1, wire (Ref #3)
3
Part #32161-404-000
Band b1, wire (Ref #3)
3
Part #32161-404-000
Band b1, wire (Ref #3)
3
Part #32161-404-000
Switch assy (Ref #4)
4
Part #35130-KSV-D01
Switch assy (Ref #4)
4
Part #35130-KSV-D01
Switch assy (Ref #4)
4
Part #35130-KSV-D01
Switch assy (Ref #4)
4
Part #35130-KSV-D01
Switch assy (Ref #5)
5
Part #35200-KSV-D01
Switch assy (Ref #5)
5
Part #35200-KSV-D01
Switch assy (Ref #5)
5
Part #35200-KSV-D01
Switch assy (Ref #5)
5
Part #35200-KSV-D01
Зажим дросселя (Ref #6)
6
Part #53140-KPB-000
Grip, r. handle (Ref #7)
7
Part #53165-MY9-890
Cover, lock nut (Ref #8)
8
Part #88130-MB6-620
Mirror comp (Ref #10)
10
Part #88210-KSV-D01
Mirror comp (Ref #11)
11
Part #88220-KSV-D01
Bolt, adapter (10mm) (Ref #12)
12
Part #90003-MW3-620
Bolt, adapter (10mm) (Ref #12)
12
Part #90003-MW3-620
Bolt, adapter (10mm) (Ref #12)
12
Part #90003-MW3-620
Bolt, adapter (10mm) (Ref #12)
12
Part #90003-MW3-620
Nut, hex. (10mm) (Ref #13)
13
Part #90201-MW3-620
Nut, hex. (10mm) (Ref #13)
13
Part #90201-MW3-620
Nut, hex. (10mm) (Ref #13)
13
Part #90201-MW3-620
Nut, hex. (10mm) (Ref #13)
13
Part #90201-MW3-620
CLIP (Ref #14)
14
Part #91540-S30-003
CLIP (Ref #15)
15
Part #91541-S0A-003
Screw-washer (5x20) (Ref #16)
16
Part #93892-0502007
Screw-washer (5x25) (Ref #17)
17
Part #93892-0502507
Screw-washer (5x35) (Ref #18)
18
Part #93892-0503507
Screw-washer (5x45) (Ref #19)
19
Part #93892-0504507
