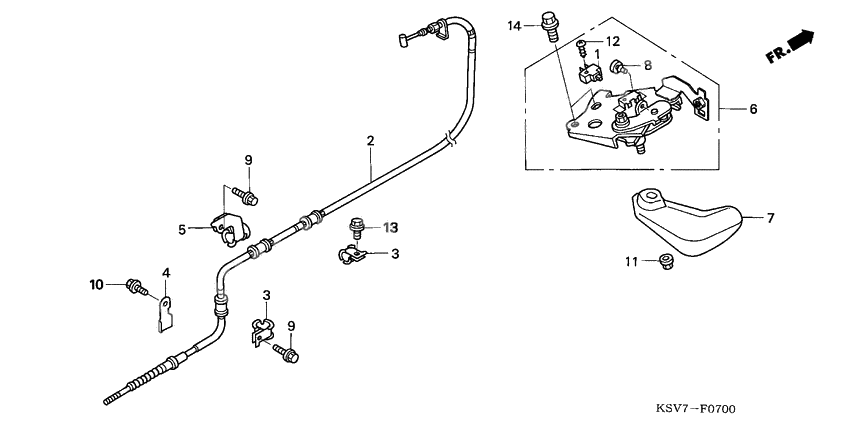

Parking brake rod knob
Parking brake rod knob
Switch assy., clutch (Ref #1)
1
Part #35330-MK5-003
Cable comp (Ref #2)
2
Part #43450-KSV-J01
Clamper (Ref #3)
3
Part #43455-KSV-J01
Clamper (Ref #3)
3
Part #43455-KSV-J01
Clamper (Ref #3)
3
Part #43455-KSV-J01
Clamper (Ref #3)
3
Part #43455-KSV-J01
CLIP (Ref #4)
4
Part #43456-KSV-J00
Clamper b (Ref #5)
5
Part #43458-KSV-J00
Ручка (Ref #6)
6
Part #47105-KSV-J02
Grip (Ref #7)
7
Part #47150-KSV-J00
Rubber, stand stopper (Ref #8)
8
Part #50505-GA7-730
BOLT (Ref #9)
9
Part #90102-KSV-J00
BOLT (Ref #9)
9
Part #90102-KSV-J00
BOLT (Ref #9)
9
Part #90102-KSV-J00
BOLT (Ref #9)
9
Part #90102-KSV-J00
Bolt, flange, 6x12 (Ref #10)
10
Part #90118-958-003
Nut, flange (self-lock) (m8x1.25) (Ref #11)
11
Part #90309-428-731
Screw, tapping, 3x10 (Ref #12)
12
Part #9390122210
BOLT (Ref #13)
13
Part #95701-060-120-8
Bolt, flange, 8x16 (Ref #14)
14
Part #95701-0801600
