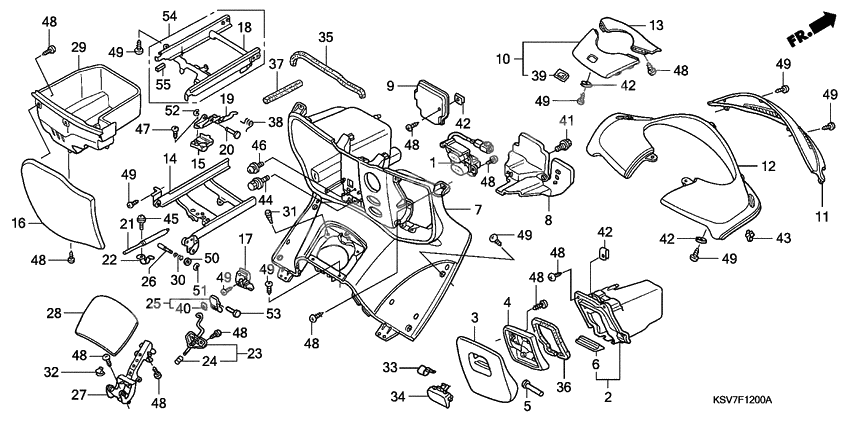

Inner box
Inner box
Switch assy (Ref #1)
1
Part #35370-KSV-J01
Pocket assy (Ref #2)
2
Part #64250-KSV-J00
Груз (Ref #3)
3
Part #64252-KSV-J00ZA
COVER (Ref #4)
4
Part #64253-KSV-J00
PIN (Ref #5)
5
Part #64254-KSV-J00
STOPPER (Ref #6)
6
Part #64255-KSV-J00
COVER (Ref #7)
7
Part #64310-KSV-J01ZA
Guard (Ref #8)
8
Part #64315-KSV-J00
Груз (Ref #9)
9
Part #64319-KSV-J00
Cover comp. (Ref #10)
10
Part #64330-KSV-J20ZF
Visor (Ref #11)
11
Part #64336-KSV-J00ZA
Visor (Ref #12)
12
Part #64337-KSV-J00ZA
Cover b (Ref #13)
13
Part #64339-KSV-J20ZA
Rail comp (Ref #14)
14
Part #64404-KSV-J01
Knob (Ref #15)
15
Part #64414-KSV-J00
Груз (Ref #16)
16
Part #64415-KSV-J00ZA
COVER (Ref #17)
17
Part #64424-KSV-J01ZA
Rail comp (Ref #18)
18
Part #64425-KSV-J01
Плата (Ref #19)
19
Part #64427-KSV-J00
PIN (Ref #20)
20
Part #64428-KSV-J00
Rod comp (Ref #21)
21
Part #64435-KSV-J00
BAND (Ref #22)
22
Part #64437-KSV-J00
Штифт (Ref #23)
23
Part #64440-KSV-J00
CAP (Ref #24)
24
Part #64443-KSV-J00
Knob (Ref #25)
25
Part #64444-KSV-J00
PIN (Ref #26)
26
Part #64445-KSV-J00
Hinge comp (Ref #27)
27
Part #64450-KSV-J01
Груз (Ref #28)
28
Part #64451-KSV-J00ZA
Pocket set (Ref #29)
29
Part #64460-KSV-D00ZA
Spring, return (Ref #30)
30
Part #64483-MCT-960
STOPPER (Ref #31)
31
Part #66418-688-000
Пружина (Ref #32)
32
Part #74494-S84-A10
Пружина (Ref #33)
33
Part #77504-SJ6-013
Lock, document *nh1* (Ref #34)
34
Part #77507-S70-013ZD
Уплотнение шток клапана (Ref #35)
35
Part #81146-KSV-J01
Валик (Ref #36)
36
Part #81147-KSV-J00
Уплотнение шток клапана (Ref #37)
37
Part #81148-KSV-J00
Return spg.,lock (Ref #38)
38
Part #81326-GEM-700
Emblem, product (Ref #39)
39
Part #86150-GFC-901
LABEL (Ref #40)
40
Part #87610-GFB-000
BOLT (Ref #41)
41
Part #90111-162-000
CLIP (Ref #43)
43
Part #90666-S84-A01
Bolt-washer, 6x12 (Ref #44)
44
Part #93404-0601200
Screw-washer (Ref #45)
45
Part #93891-040-080-8
Screw-washer (Ref #46)
46
Part #93891-050-100-7
Болт (Ref #47)
47
Part #93903-34180
Шайба (Ref #50)
50
Part #94101-05000
E-RING (Ref #51)
51
Part #94540-03018
E-RING (Ref #52)
52
Part #94540-04018
Pin a, pillion step (Ref #53)
53
Part #9501581000
Rail comp (Ref #54)
54
Part #64425-KSV-K10
Rail comp (Ref #54)
54
Part #64425-KSV-K11
CUSHION (Ref #55)
55
Part #64421-KSV-K10
CUSHION (Ref #55)
55
Part #64421-KSV-K11
