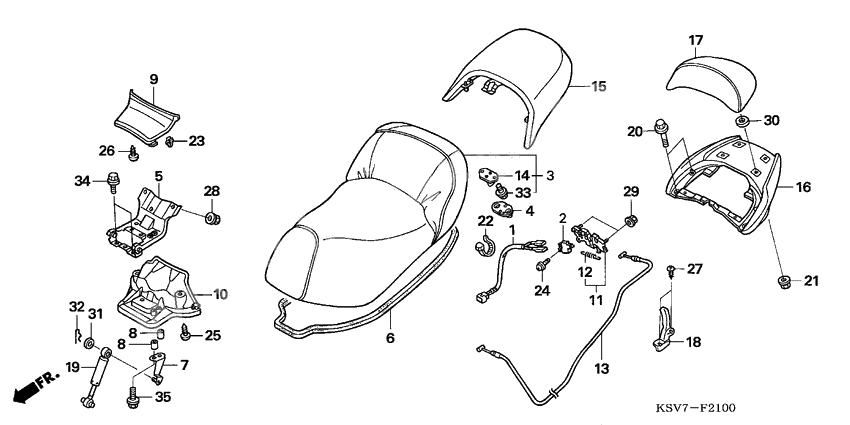

Seat/rear spoiler
Seat/rear spoiler
Sub cord (Ref #1)
1
Part #32106-KSV-J00
Switch assy., clutch (Ref #2)
2
Part #35330-MB0-003
Seat comp (Ref #3)
3
Part #77100-KSV-J00
RUBBER (Ref #4)
4
Part #77107-KSV-J00
Петля (Ref #5)
5
Part #77110-KSV-J00
RUBBER (Ref #6)
6
Part #77115-KSV-J00
STAY (Ref #7)
7
Part #77144-KSV-J00
COLLAR (Ref #8)
8
Part #77146-KSV-J00
COLLAR (Ref #8)
8
Part #77146-KSV-J00
COLLAR (Ref #8)
8
Part #77146-KSV-J00
COLLAR (Ref #8)
8
Part #77146-KSV-J00
COVER (Ref #9)
9
Part #77150-KSV-J02ZA
COVER (Ref #10)
10
Part #77160-KSV-J00
Catch comp. (Ref #11)
11
Part #77235-KSV-J00
Spring, seat catch (Ref #12)
12
Part #77236-GBL-000
Cable (Ref #13)
13
Part #77241-KSV-J01
PLATE (Ref #14)
14
Part #77246-KSV-J00
Seat comp (Ref #15)
15
Part #77300-KSV-J00
Spoiler comp. (Ref #16)
16
Part #77320-KSV-J00ZJ
Spoiler comp. (Ref #16)
16
Part #77320-KSV-J00ZH
Spoiler comp. (Ref #16)
16
Part #77320-KSV-J00ZK
Seat comp (Ref #17)
17
Part #77400-KSV-J00
COVER (Ref #18)
18
Part #81252-KSV-J00
Амортизатор (Ref #19)
19
Part #83590-KSV-J01
Bolt (8x40) (Ref #20)
20
Part #90122-MM2-000
Nut, flange (self-lock) (m8x1.25) (Ref #21)
21
Part #90309-428-731
BAND (Ref #22)
22
Part #90651-MA6-720
CLIP (Ref #23)
23
Part #90666-S84-A01
Screw-washer (Ref #24)
24
Part #93893-040-140-8
Болт (Ref #25)
25
Part #93903-25380
Болт (Ref #26)
26
Part #93903-34380
Болт (Ref #27)
27
Part #93903-34480
Гайка (Ref #28)
28
Part #94050-06000
ナット (Ref #29)
29
Part #94050-06070
Шайба (Ref #30)
30
Part #94101-08000
Washer, plain, 10mm (Ref #31)
31
Part #9410210000
Pin, lock, 10mm (Ref #32)
32
Part #9425110000
BOLT (Ref #33)
33
Part #95701-060-120-0
BOLT (Ref #34)
34
Part #95701-060-160-0
Bolt, flange, 6x28 (Ref #35)
35
Part #95801-0602800
