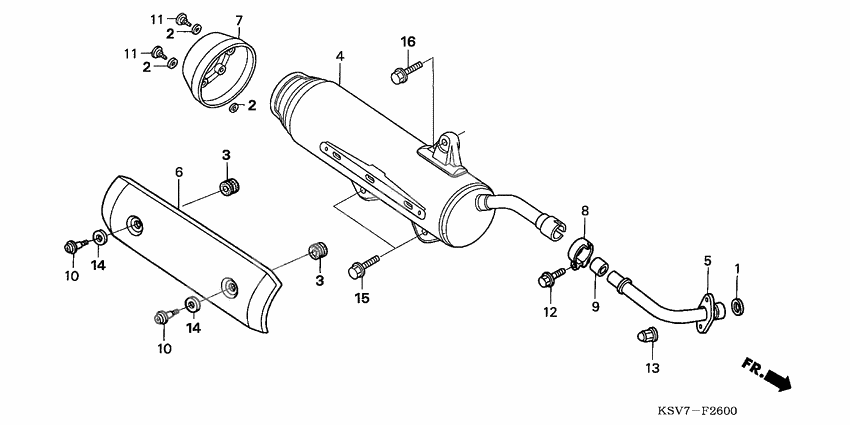

Exhaust muffler
Exhaust muffler
Прокладка (Ref #1)
1
Part #18291-KSV-J01
Gasket, ex. pipe (Ref #1)
1
Part #18291-KS4-690
RUBBER (Ref #3)
3
Part #18294-KSV-J00
RUBBER (Ref #3)
3
Part #18294-KSV-J00
RUBBER (Ref #3)
3
Part #18294-KSV-J00
RUBBER (Ref #3)
3
Part #18294-KSV-J00
Muffler comp. (Ref #4)
4
Part #18300-KSV-D00
Joint, ex. pipe (Ref #5)
5
Part #18301-KFG-000
PROTECTOR (Ref #6)
6
Part #18319-KPB-750
Cover,tail cap (Ref #7)
7
Part #18350-KPB-751
Band, ex. pipe (Ref #8)
8
Part #18373-KAB-000
Gasket, muffler (Ref #9)
9
Part #18391-MN1-670
Болт (Ref #10)
10
Part #90109-KSV-J00
Болт (Ref #10)
10
Part #90109-KSV-J00
Болт (Ref #10)
10
Part #90109-KSV-J00
Болт (Ref #10)
10
Part #90109-KSV-J00
Screw (5x14) (Ref #11)
11
Part #90114-KPB-750
Screw (5x14) (Ref #11)
11
Part #90114-KPB-750
Screw (5x14) (Ref #11)
11
Part #90114-KPB-750
Screw (5x14) (Ref #11)
11
Part #90114-KPB-750
Болт (Ref #12)
12
Part #90129-KFG-000
Nut, cap (8mm) (Ref #13)
13
Part #90304-ME1-670
Шайба (Ref #14)
14
Part #90505-KSV-J00
Шайба (Ref #14)
14
Part #90505-KSV-J00
Шайба (Ref #14)
14
Part #90505-KSV-J00
Шайба (Ref #14)
14
Part #90505-KSV-J00
Bolt, flange, 10x35 (Ref #15)
15
Part #95701-1003507
Болт (Ref #16)
16
Part #95701-1005007
