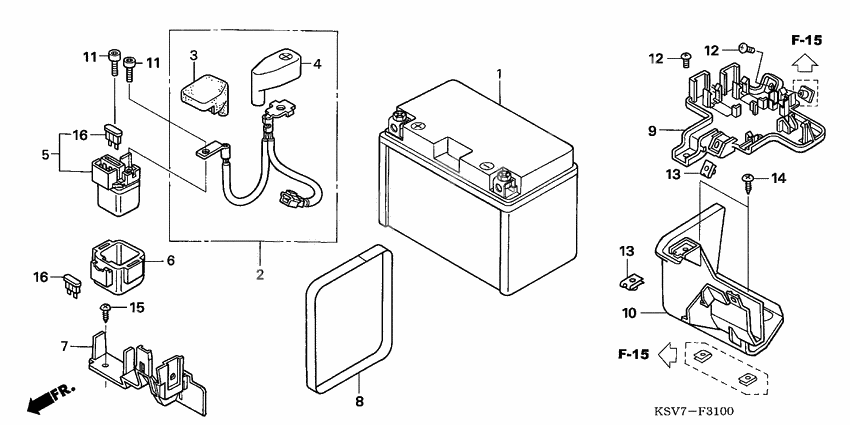

Battery
Battery
Аккумулятор (Ref #1)
1
Part #31500-MCF-643AH
Battery 12a wet(f (Ref #1)
1
Part #31500-MCF-642
Cable (Ref #2)
2
Part #32401-KSV-J00
COVER (Ref #3)
3
Part #32406-KAZ-010
COVER (Ref #4)
4
Part #32414-MW0-000
Реле стартера (Ref #5)
5
Part #35850-MR5-007
RUBBER (Ref #6)
6
Part #35856-MBG-003
Основание (Ref #7)
7
Part #50327-KSV-J00
TAPE (Ref #8)
8
Part #50328-KSV-J00
BAND (Ref #9)
9
Part #50329-KSV-J01
Основание (Ref #10)
10
Part #50337-KSV-J00
Bolt, socket (5x9) (Ref #11)
11
Part #90111-MR5-000
Bolt, socket (5x9) (Ref #11)
11
Part #90111-MR5-000
Bolt, socket (5x9) (Ref #11)
11
Part #90111-MR5-000
Bolt, socket (5x9) (Ref #11)
11
Part #90111-MR5-000
Screw, pan, 6mm (Ref #12)
12
Part #90113-GS6-010
Screw, pan, 6mm (Ref #12)
12
Part #90113-GS6-010
Screw, pan, 6mm (Ref #12)
12
Part #90113-GS6-010
Screw, pan, 6mm (Ref #12)
12
Part #90113-GS6-010
Nut, clip (6mm) (Ref #13)
13
Part #90305-GEE-710
Nut, clip (6mm) (Ref #13)
13
Part #90305-GEE-710
Nut, clip (6mm) (Ref #13)
13
Part #90305-GEE-710
Nut, clip (6mm) (Ref #13)
13
Part #90305-GEE-710
Болт (Ref #14)
14
Part #93903-34380
Болт (Ref #15)
15
Part #93903-35310
Fuse (Ref #16)
16
Part #98200-33000
Fuse (Ref #16)
16
Part #98200-33000
Fuse (Ref #16)
16
Part #98200-33000
Fuse (Ref #16)
16
Part #98200-33000
