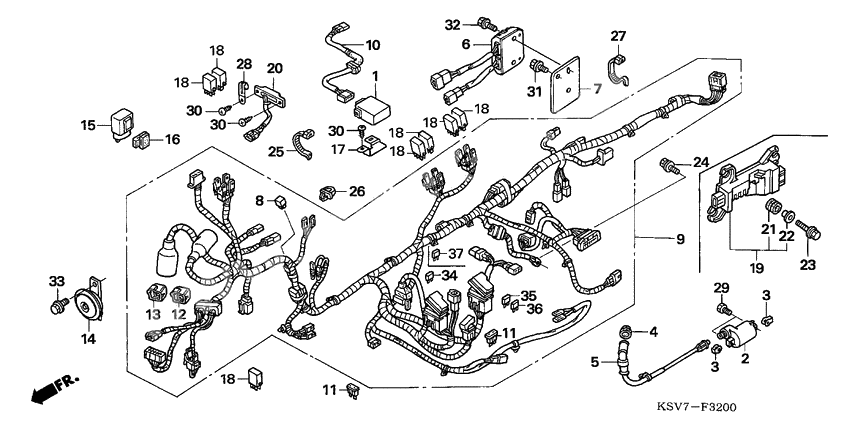

Harness wire
Harness wire
Receiver unit (Ref #1)
1
Part #30430-KSV-D01
Катушка зажигания (Ref #2)
2
Part #30500-MBG-003
Кольцо/шайба (Ref #3)
3
Part #30520-ML7-000
Кольцо/шайба (Ref #3)
3
Part #30520-ML7-000
Кольцо/шайба (Ref #3)
3
Part #30520-ML7-000
Кольцо/шайба (Ref #3)
3
Part #30520-ML7-000
Валик (Ref #4)
4
Part #30605-KM1-000
Cord set (Ref #5)
5
Part #30730-KSV-J00
Rectifier assy. (Ref #6)
6
Part #31600-KSV-J01
PLATE (Ref #7)
7
Part #31601-KSV-J00
Rectifier comp., silicon (Ref #8)
8
Part #31700-MM8-610
Жгут проводов (Ref #9)
9
Part #32100-KSV-D00
Sub cord (Ref #10)
10
Part #32103-KSV-D00
Fuse, blade (40a) (Ref #11)
11
Part #32501-KSV-J00
Fuse, blade (40a) (Ref #11)
11
Part #32501-KSV-J00
Fuse, blade (40a) (Ref #11)
11
Part #32501-KSV-J00
Fuse, blade (40a) (Ref #11)
11
Part #32501-KSV-J00
CAP (Ref #12)
12
Part #32605-GEV-761
Cap, dummy (4p) (Ref #13)
13
Part #32606-GEV-761
Horn (Ref #14)
14
Part #38110-KSV-J00
Relay, turn signal (Ref #15)
15
Part #38301-MEG-000
Suspension (Ref #16)
16
Part #38306-GE7-000
PLATE (Ref #17)
17
Part #38386-KSV-J00
Антенна (Ref #20)
20
Part #39150-KSV-D01
BOLT (Ref #24)
24
Part #90149-SE0-003
BAND (Ref #25)
25
Part #90651-MA6-720
Clip, harness (Ref #26)
26
Part #90659-734-K51
BAND (Ref #27)
27
Part #90679-SG9-E01
CLIP (Ref #28)
28
Part #91406-657-671
Bolt, hex., 6x20 (Ref #29)
29
Part #92101-06020-4J
BOLT (Ref #31)
31
Part #95701-060-120-8
Bolt, flange, 6x32 (Ref #32)
32
Part #95701-0603207
Bolt, flange, 8x12 (Ref #33)
33
Part #95701-0801200
Fuse (Ref #34)
34
Part #98200-41000
ПРЕДОХРАНИТЕЛЬ, 15А (Ref #35)
35
Part #98200-41500
Fuse (Ref #36)
36
Part #98200-42000
-
1838501-MCS-G00
Relay (micro iso 4p)
7Replaced by 38501-MCS-G01 Доступно: Нет в наличии
