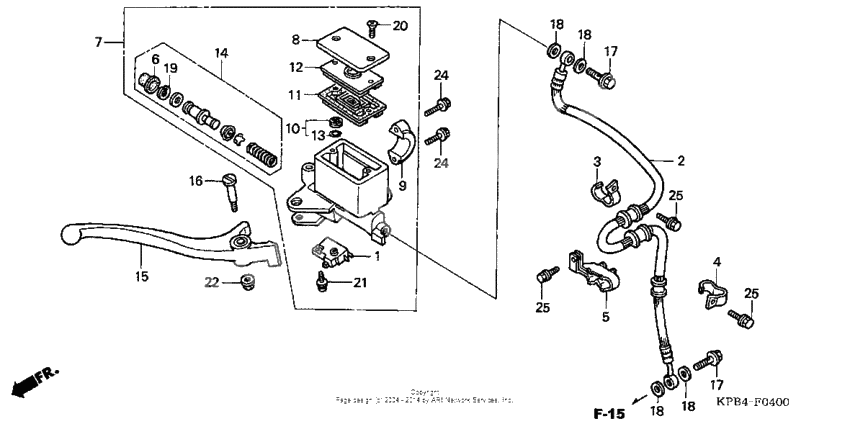

Front brake master cylinder (1)
Front brake master cylinder (1)
Switch, fr. stop (Ref #1)
1
Part #35340-MA5-671
Hose, r. fr. brake (Ref #2)
2
Part #45125-KPB-004
Clip a, brake hose (Ref #3)
3
Part #45127-KFG-000
Clip b, brake hose (Ref #4)
4
Part #45128-KFG-640
Clamp a, brake hose (Ref #5)
5
Part #45135-KPB-000
Ботинок (Ref #6)
6
Part #45504-410-003
M/cyl sub-assy, fr. (Ref #7)
7
Part #45510-KPB-641
Cap, master cylinder (Ref #8)
8
Part #45513-HR0-305
HOLDER (Ref #9)
9
Part #45517-166-006
Сепаратор (Ref #10)
10
Part #45518-KY1-701
DIAPHRAGM (Ref #11)
11
Part #45520-MG7-006
Пластина (Ref #12)
12
Part #45521-HA2-006
CLIP (Ref #13)
13
Part #45523-KY1-701
Master cylinder set (Ref #14)
14
Part #45530-471-831
Lever, r. handle (Ref #15)
15
Part #53175-MK7-671
Bolt, handle lever (Ref #16)
16
Part #90114-KT7-006
Bolt, oil (10x22) (Ref #17)
17
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #17)
17
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #17)
17
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #17)
17
Part #90145-MS9-612
Circlip (Ref #19)
19
Part #90651-MA5-671
Болт (Ref #20)
20
Part #93600-040120G
Screw-washer (Ref #21)
21
Part #93893-040-120-7
Гайка (Ref #22)
22
Part #94050-06000
Болт (Ref #24)
24
Part #96001-0602207
Болт (Ref #24)
24
Part #96001-0602207
Болт (Ref #24)
24
Part #96001-0602207
Болт (Ref #24)
24
Part #96001-0602207
