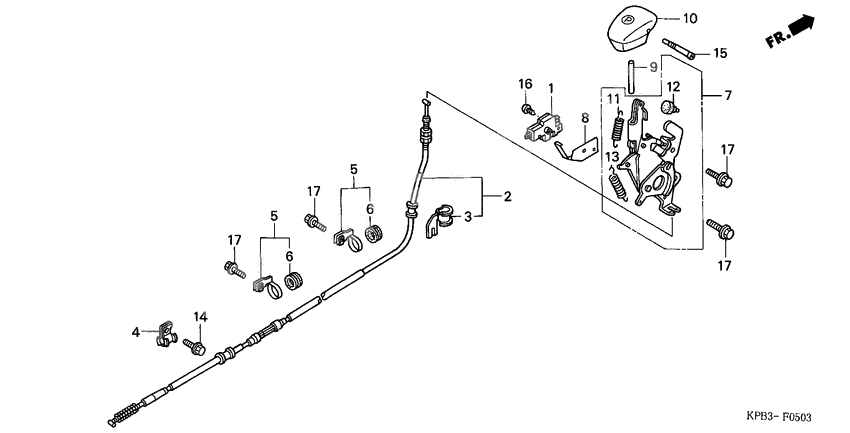

Parking brake rod knob
Parking brake rod knob
Switch assy., clutch (Ref #1)
1
Part #35330-MB0-003
Cable, parking brake (Ref #2)
2
Part #43450-KPB-000
Хомут (Ref #3)
3
Part #43455-KPB-000
Clamp b, rr. (Ref #4)
4
Part #43456-KPB-000
Guide, brake cable (Ref #5)
5
Part #43460-GCK-000
Guide, brake cable (Ref #5)
5
Part #43460-GCK-000
Guide, brake cable (Ref #5)
5
Part #43460-GCK-000
Guide, brake cable (Ref #5)
5
Part #43460-GCK-000
Guide, cable (inner) (Ref #6)
6
Part #45466-329-000
Guide, cable (inner) (Ref #6)
6
Part #45466-329-000
Guide, cable (inner) (Ref #6)
6
Part #45466-329-000
Guide, cable (inner) (Ref #6)
6
Part #45466-329-000
Lever, hand brake (Ref #7)
7
Part #47105-KPB-010
Плата (Ref #8)
8
Part #47125-KPB-000
Штанга (Ref #9)
9
Part #47140-KPB-000
Grip, hand brake (Ref #10)
10
Part #47150-KPB-000
Пружина (Ref #11)
11
Part #47160-KPB-000
Rubber, stand stopper (Ref #12)
12
Part #50505-GA7-730
Пружина (Ref #13)
13
Part #50513-GBL-000
Bolt, flange, 6x12 (Ref #14)
14
Part #90118-958-003
Screw, special (5mm) (Ref #15)
15
Part #90131-KPB-000
Болт (Ref #16)
16
Part #93500-040-100-A
