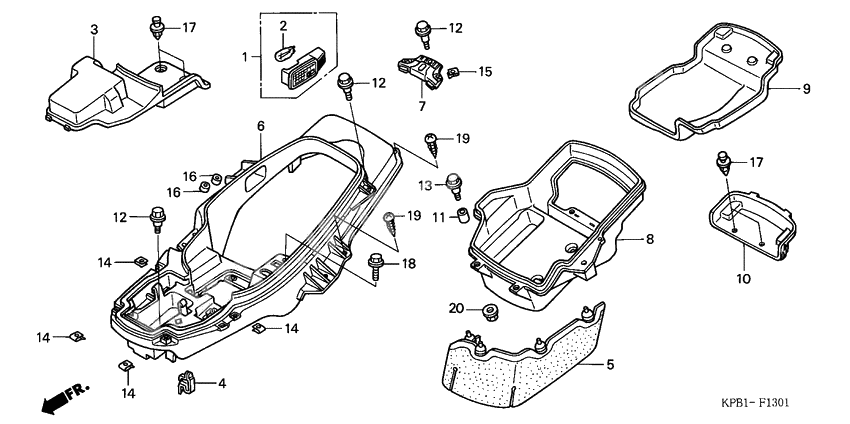

Luggage box NSS2502
Luggage box NSS2502
Light assy trunk (Ref #1)
1
Part #34260-KPB-J11
Bulb wedge base(1 (Ref #2)
2
Part #34925-KPB-J11
Крышка аккамулятора (Ref #3)
3
Part #50326-KPB-000
Hook, helmet (Ref #4)
4
Part #77106-KFG-000
Guard (Ref #5)
5
Part #80104-KPB-J10
Box (Ref #6)
6
Part #81251-KPB-J10
COVER (Ref #7)
7
Part #81254-KPB-J10
Box comp (Ref #8)
8
Part #81260-KPB-J10
Коврик (Ref #9)
9
Part #81271-KPB-J10
Груз (Ref #10)
10
Part #81296-KPB-J10
Collar,tail light (Ref #11)
11
Part #84709-124-000
Болт (Ref #13)
13
Part #90147-KPB-J10
Nut, clip (6mm) (Ref #15)
15
Part #90305-GEE-710
Collar, body cover (Ref #16)
16
Part #90312-GF0-000
Collar, body cover (Ref #16)
16
Part #90312-GF0-000
Collar, body cover (Ref #16)
16
Part #90312-GF0-000
Collar, body cover (Ref #16)
16
Part #90312-GF0-000
CLIP (Ref #17)
17
Part #90601-PV3-003
CLIP (Ref #17)
17
Part #90601-PV3-003
CLIP (Ref #17)
17
Part #90601-PV3-003
CLIP (Ref #17)
17
Part #90601-PV3-003
Bolt-washer (Ref #18)
18
Part #93404-060-120-7
Болт (Ref #19)
19
Part #93903-34480
Болт (Ref #19)
19
Part #93903-34480
Болт (Ref #19)
19
Part #93903-34480
Болт (Ref #19)
19
Part #93903-34480
Гайка (Ref #20)
20
Part #94050-06000
