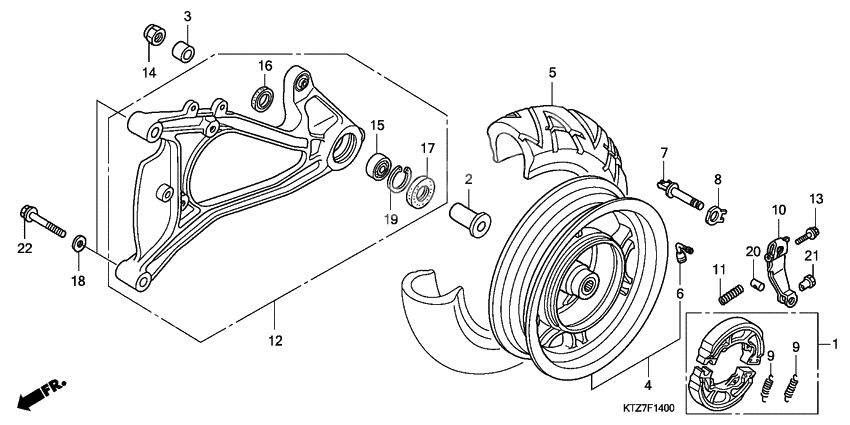

Rear wheel/swingarm
Rear wheel/swingarm
Shoe set, brake (Ref #1)
1
Part #06430-GBJ-K20
Collar a, rr. axle (Ref #2)
2
Part #42311-KGF-900
Collar b, rr. axle (Ref #3)
3
Part #42312-KEY-900
Wheel sub assy. (Ref #4)
4
Part #42650-KGF-900ZB
Wheel sub*nh365m* (Ref #4)
4
Part #42650-KGF-900ZA
TIRE (Ref #5)
5
Part #42711-KTZ-D01
TIRE (Ref #5)
5
Part #42711-KGF-904
Valve rim rr (Ref #6)
6
Part #42753-GAV-701
Cam, fr. brake (Ref #7)
7
Part #43141-KB4-003
Seat,rr brk cam (Ref #8)
8
Part #43142-KGF-900
Spring, brake shoe (Ref #9)
9
Part #43151-329-000
Spring, brake shoe (Ref #9)
9
Part #43151-329-000
Spring, brake shoe (Ref #9)
9
Part #43151-329-000
Spring, brake shoe (Ref #9)
9
Part #43151-329-000
Arm comp.rr brk (Ref #10)
10
Part #43410-KGF-900
Spring, rr. (Ref #11)
11
Part #43472-KG8-000
Swingarm assy. (Ref #12)
12
Part #52100-KTF-640
Болт (Ref #13)
13
Part #90102-KAB-000
Nut, u (16mm) (Ref #14)
14
Part #90305-KBN-901
Bearing (6303uu) (Ref #15)
15
Part #91051-KS4-003
Dust seal, 37x25x6 (Ref #16)
16
Part #91258-HB3-003
Валик (Ref #17)
17
Part #91259-KM1-003
Washer, plain, 10mm (Ref #18)
18
Part #9410110000
Circlip, internal, 47mm (Ref #19)
19
Part #9452047000
Joint b, brake arm (Ref #20)
20
Part #9501532001
Nut b, brake rod adjusting (Ref #21)
21
Part #9501542000
Bolt, flange, 10x60 (Ref #22)
22
Part #95701-1006000
