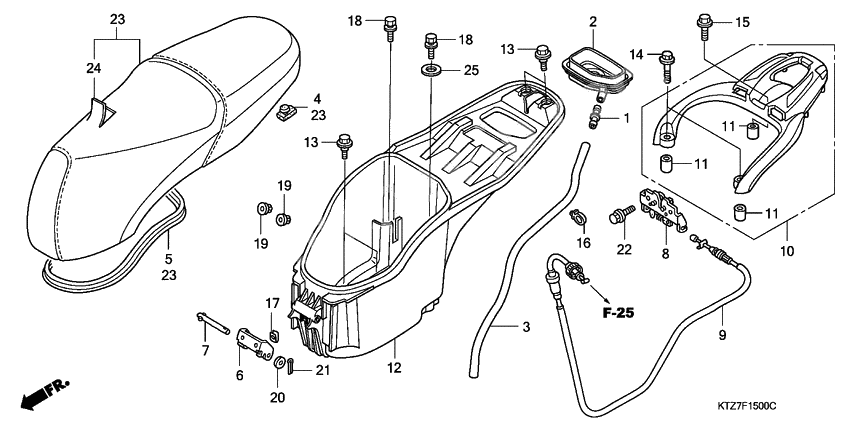

Seat/luggage box
Seat/luggage box
Joint, fuel tube (Ref #1)
1
Part #17525-KBN-900
Tray, fuel (Ref #2)
2
Part #17525-KTZ-D00
Трубка дренажная (Ref #3)
3
Part #17526-KTF-640
Rubber, stopper (Ref #4)
4
Part #50352-KE1-000
RUBBER (Ref #5)
5
Part #77115-KTZ-D00
Hinge,seat (Ref #6)
6
Part #77201-KPR-900
PIN,SEAT HINGE (Ref #7)
7
Part #77206-KPR-900
Catch, seat (Ref #8)
8
Part #77230-KPR-900
Cable (Ref #9)
9
Part #77240-KTZ-D00
Багажник (Ref #10)
10
Part #81200-KTZ-D00
Box (Ref #12)
12
Part #81250-KTZ-D00
BOLT (Ref #13)
13
Part #90111-162-000
BOLT (Ref #13)
13
Part #90111-162-000
BOLT (Ref #13)
13
Part #90111-162-000
BOLT (Ref #13)
13
Part #90111-162-000
Болт (Ref #14)
14
Part #90127-KC1-730
BOLT (Ref #15)
15
Part #90183-KTZ-D00
Clip, harness (Ref #16)
16
Part #90659-734-K51
Nut, clip (5mm) (Ref #17)
17
Part #90677-GR1-003
Bolt-washer, 6x12 (Ref #18)
18
Part #93404-0601200
Bolt-washer, 6x12 (Ref #18)
18
Part #93404-0601200
Bolt-washer, 6x12 (Ref #18)
18
Part #93404-0601200
Bolt-washer, 6x12 (Ref #18)
18
Part #93404-0601200
Гайка (Ref #19)
19
Part #94050-06000
Гайка (Ref #19)
19
Part #94050-06000
Гайка (Ref #19)
19
Part #94050-06000
Гайка (Ref #19)
19
Part #94050-06000
Шайба (Ref #20)
20
Part #94101-06800
PIN (Ref #21)
21
Part #9420116250
BOLT (Ref #22)
22
Part #95701-060-100-7
Leather comp. (Ref #24)
24
Part #77201-KTZ-D01ZB
Leather comp. (Ref #24)
24
Part #77201-KTZ-D01ZA
