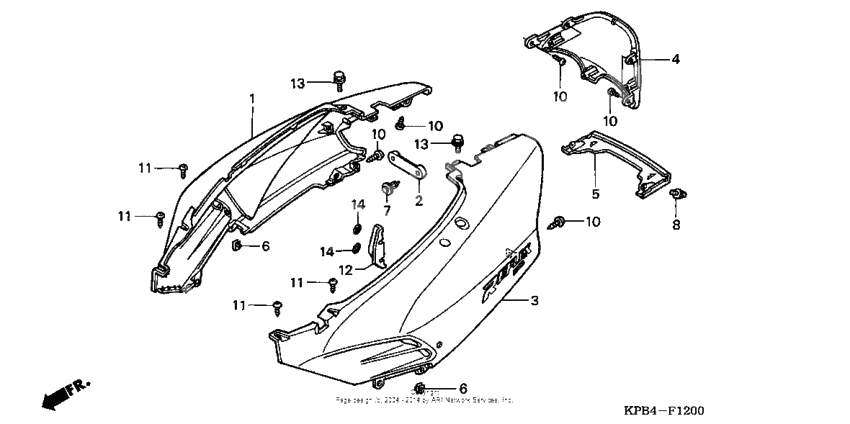

Body cover + luggage box
Body cover + luggage box
Cvr, r. body (type1) (Ref #1)
1
Part #83400-KPB-670ZA
Cvr, r. body (type2) (Ref #1)
1
Part #83400-KPB-670ZB
Plate, cover setting (Ref #2)
2
Part #83413-KPB-000
Cvr, l. body (type1) (Ref #3)
3
Part #83500-KPB-670ZA
Cvr, l. body (type2) (Ref #3)
3
Part #83500-KPB-670ZB
Cvr, rr. (type2) (Ref #4)
4
Part #83600-KPB-000ZB
Cvr, rr. (type1) (Ref #4)
4
Part #83600-KPB-000ZA
Cover, rr. *nh411m* (Ref #5)
5
Part #83611-KPB-000ZE
Cover, rr. *r101cu* (Ref #5)
5
Part #83611-KPB-000ZF
Nut, clip (5mm) (Ref #6)
6
Part #90677-KAN-961
Nut, clip (5mm) (Ref #6)
6
Part #90677-KAN-961
Nut, clip (5mm) (Ref #6)
6
Part #90677-KAN-961
Nut, clip (5mm) (Ref #6)
6
Part #90677-KAN-961
Клипса крепления бампера (Ref #7)
7
Part #90683-GAZ-003
Screw-washer (Ref #8)
8
Part #93891-050-160-7
Plate, waterproof (Ref #12)
12
Part #83520-KPB-000
Болт (Ref #13)
13
Part #90147-KPB-J10
Болт (Ref #13)
13
Part #90147-KPB-J10
Болт (Ref #13)
13
Part #90147-KPB-J10
Болт (Ref #13)
13
Part #90147-KPB-J10
Nut, speed (3mm) (Ref #14)
14
Part #90313-GAH-780
Nut, speed (3mm) (Ref #14)
14
Part #90313-GAH-780
Nut, speed (3mm) (Ref #14)
14
Part #90313-GAH-780
Nut, speed (3mm) (Ref #14)
14
Part #90313-GAH-780
