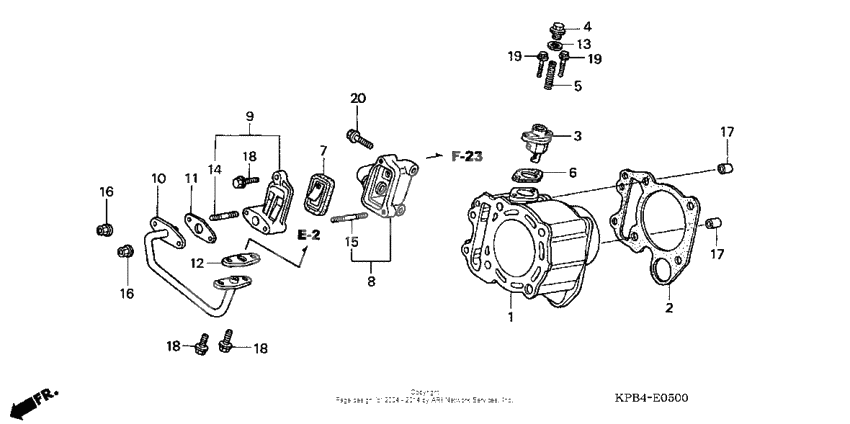

Cylinder
Cylinder
Цилиндр (Ref #1)
1
Part #12100-KFG-J00
Прокладка цилиндра (Ref #2)
2
Part #12191-KAB-010
Body, adjuster (Ref #3)
3
Part #14551-KAB-003
Plug, adjuster (Ref #4)
4
Part #14552-KAB-003
Пружина (Ref #5)
5
Part #14553-KAB-003
Прокладка (Ref #6)
6
Part #14555-KAB-771
Клапан (Ref #7)
7
Part #18601-MJ1-791
Case, reed valve (Ref #8)
8
Part #18610-KFG-J00
Cover, reed valve (Ref #9)
9
Part #18612-KFG-J00
Pipe, air feed (Ref #10)
10
Part #18640-KFG-J00
Прокладка (Ref #11)
11
Part #18645-GY6-940
Прокладка (Ref #12)
12
Part #18646-KFG-J01
Шайба (Ref #13)
13
Part #90421-KAB-003
BOLT (Ref #14)
14
Part #92900-06016-0B
Болт заклепка (Ref #15)
15
Part #92900-06032-0E
Гайка (Ref #16)
16
Part #94050-06000
Гайка (Ref #16)
16
Part #94050-06000
Гайка (Ref #16)
16
Part #94050-06000
Гайка (Ref #16)
16
Part #94050-06000
Dowel pin (Ref #17)
17
Part #94301-10160
Dowel pin (Ref #17)
17
Part #94301-10160
Dowel pin (Ref #17)
17
Part #94301-10160
Dowel pin (Ref #17)
17
Part #94301-10160
Bolt, flange, 6x22 (Ref #19)
19
Part #95701-0602200
Bolt, flange, 6x22 (Ref #19)
19
Part #95701-0602200
Bolt, flange, 6x22 (Ref #19)
19
Part #95701-0602200
Bolt, flange, 6x22 (Ref #19)
19
Part #95701-0602200
Bolt, flange, 6x32 (Ref #20)
20
Part #95701-0603200
