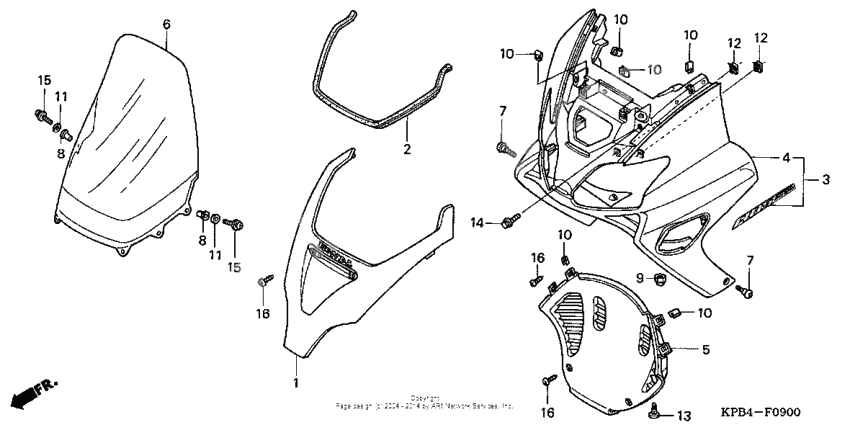

Front cover
Front cover
Garnish set (type2) (Ref #1)
1
Part #64100-KPB-000ZB
Garnish set (type1) (Ref #1)
1
Part #64100-KPB-000ZA
Molding, windscreen (Ref #2)
2
Part #64105-KPB-J10
Cvr, fr. (type2) (Ref #3)
3
Part #64300-KPB-710ZB
Cvr, fr. (type1) (Ref #3)
3
Part #64300-KPB-710ZA
Cover, fr. *r244r* (Ref #5)
5
Part #64351-KPB-000ZF
Cover, fr. *nh308r* (Ref #5)
5
Part #64351-KPB-000ZE
Отсутствующе (Ref #6)
6
Part #67101-KPB-670
Screw (5x16) (Ref #7)
7
Part #90109-KW3-000
Screw (5x16) (Ref #7)
7
Part #90109-KW3-000
Screw (5x16) (Ref #7)
7
Part #90109-KW3-000
Screw (5x16) (Ref #7)
7
Part #90109-KW3-000
Гайка (Ref #8)
8
Part #90111-KW3-003
Гайка (Ref #8)
8
Part #90111-KW3-003
Гайка (Ref #8)
8
Part #90111-KW3-003
Гайка (Ref #8)
8
Part #90111-KW3-003
Nut, open stay (6mm) (Ref #9)
9
Part #90301-KPB-000
ШАЙБА КРЕПЛЕНИЯ (Ref #11)
11
Part #90504-964-000
ШАЙБА КРЕПЛЕНИЯ (Ref #11)
11
Part #90504-964-000
ШАЙБА КРЕПЛЕНИЯ (Ref #11)
11
Part #90504-964-000
ШАЙБА КРЕПЛЕНИЯ (Ref #11)
11
Part #90504-964-000
Nut, clip (5mm) (Ref #12)
12
Part #90677-KAN-961
Nut, clip (5mm) (Ref #12)
12
Part #90677-KAN-961
Nut, clip (5mm) (Ref #12)
12
Part #90677-KAN-961
Nut, clip (5mm) (Ref #12)
12
Part #90677-KAN-961
Клипса крепления бампера (Ref #13)
13
Part #90683-GAZ-003
Bolt-washer (Ref #14)
14
Part #93404-060-160-8
Screw-washer (Ref #15)
15
Part #93891-050-200-8
Screw-washer (Ref #15)
15
Part #93891-050-200-8
Screw-washer (Ref #15)
15
Part #93891-050-200-8
Screw-washer (Ref #15)
15
Part #93891-050-200-8
