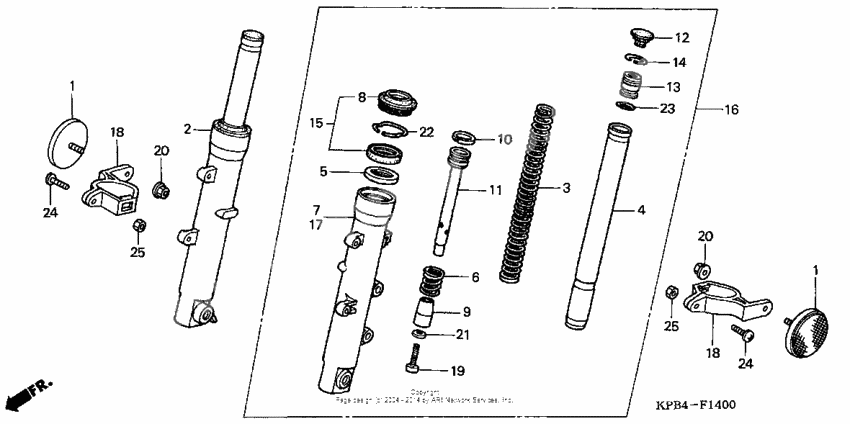

Front fork
Front fork
Reflector, fr. (Ref #1)
1
Part #33742-HB9-641
Reflector, fr. (Ref #1)
1
Part #33742-HB9-641
Reflector, fr. (Ref #1)
1
Part #33742-HB9-641
Reflector, fr. (Ref #1)
1
Part #33742-HB9-641
Fork assy., r. fr. (Ref #2)
2
Part #51400-KPB-013
Spring, fr. fork (Ref #3)
3
Part #51401-KPB-013
Pipe, fr. fork (Ref #4)
4
Part #51410-KPB-003
Ring, back-up (Ref #5)
5
Part #51412-GC4-731
Пружина (Ref #6)
6
Part #51412-340-000
Case, r. fr. (lower) (Ref #7)
7
Part #51420-KFG-003
DUST SEAL (Ref #8)
8
Part #51425-KL8-901
Piece, oil lock (Ref #9)
9
Part #51432-KPB-003
Кольцо поршневое (Ref #10)
10
Part #51437-KFG-003
Pipe, seat (Ref #11)
11
Part #51440-KPB-013
Cap, fork pipe (Ref #12)
12
Part #51449-KFG-003
Пружина (Ref #13)
13
Part #51454-KFG-003
Ring (29.8x1.2) (Ref #14)
14
Part #51456-KFG-003
Seal set, fr. fork (Ref #15)
15
Part #51490-KL8-900
Fork assy., l. fr. (Ref #16)
16
Part #51500-KPB-013
Case, l. fr. (lower) (Ref #17)
17
Part #51520-KFG-003
Stay, fr. reflector (Ref #18)
18
Part #61104-KPB-670
Stay, fr. reflector (Ref #18)
18
Part #61104-KPB-670
Stay, fr. reflector (Ref #18)
18
Part #61104-KPB-670
Stay, fr. reflector (Ref #18)
18
Part #61104-KPB-670
Bolt, socket (8mm) (Ref #19)
19
Part #90116-383-721
Nut, u, 6mm (Ref #20)
20
Part #90301-473-003
Nut, u, 6mm (Ref #20)
20
Part #90301-473-003
Nut, u, 6mm (Ref #20)
20
Part #90301-473-003
Nut, u, 6mm (Ref #20)
20
Part #90301-473-003
Шайба (Ref #21)
21
Part #90544-283-000
RING (Ref #22)
22
Part #90601-369-000
Прокладка (Ref #23)
23
Part #91356-KFG-003
Болт (Ref #24)
24
Part #93500-050-200-A
Болт (Ref #24)
24
Part #93500-050-200-A
Болт (Ref #24)
24
Part #93500-050-200-A
Болт (Ref #24)
24
Part #93500-050-200-A
Гайка (Ref #25)
25
Part #94001-050-000-S
Гайка (Ref #25)
25
Part #94001-050-000-S
Гайка (Ref #25)
25
Part #94001-050-000-S
Гайка (Ref #25)
25
Part #94001-050-000-S
