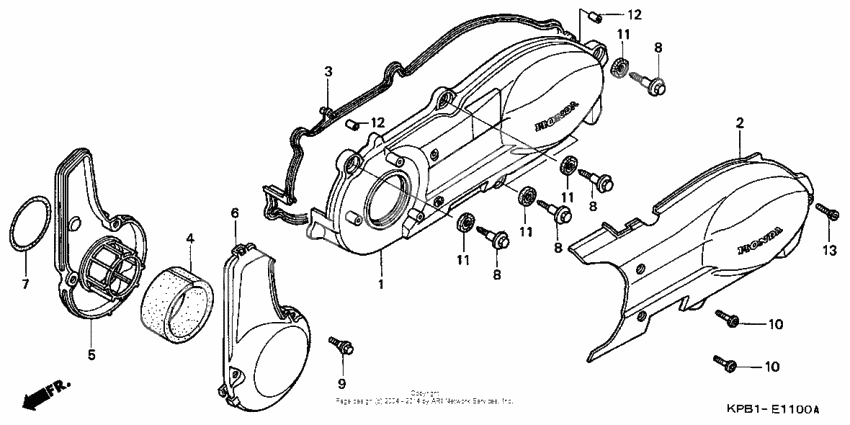

Left crankcase cover
Left crankcase cover
Cover, l (Ref #1)
1
Part #11340-KPB-000
Cover, l. side (Ref #2)
2
Part #11360-KPB-010
Gasket, l. cover (Ref #3)
3
Part #11395-KFG-J00
Элемент (Ref #4)
4
Part #19412-KFG-000
Duct, belt cover (Ref #5)
5
Part #19413-KFG-000
Cap, duct cover (Ref #6)
6
Part #19414-KFG-000
Валик (Ref #7)
7
Part #19415-KAB-000
Bolt, special (5mm) (Ref #9)
9
Part #90112-GR2-000
Bolt, special (6x25) (Ref #10)
10
Part #90115-MAS-E00
Bolt, special (6x25) (Ref #10)
10
Part #90115-MAS-E00
Bolt, special (6x25) (Ref #10)
10
Part #90115-MAS-E00
Bolt, special (6x25) (Ref #10)
10
Part #90115-MAS-E00
Dowel pin, 8x16 (Ref #12)
12
Part #9430108160
Dowel pin, 8x16 (Ref #12)
12
Part #9430108160
Dowel pin, 8x16 (Ref #12)
12
Part #9430108160
Dowel pin, 8x16 (Ref #12)
12
Part #9430108160
Bolt, socket (6x25) (Ref #13)
13
Part #96600-0602500
