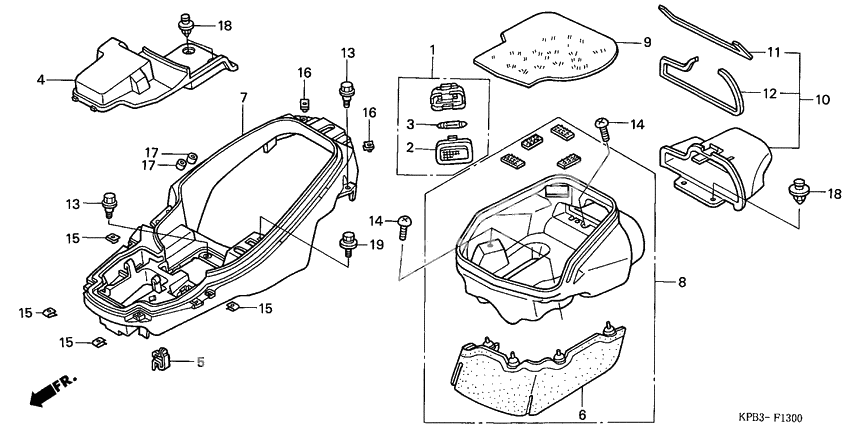

Luggage box NSS2501/NSS250A
Luggage box NSS2501/NSS250A
Light assy (Ref #1)
1
Part #34260-SZ3-003
Линза (Ref #2)
2
Part #34262-SM4-003
Bulb (Ref #3)
3
Part #34295-SA5-003
Крышка аккамулятора (Ref #4)
4
Part #50326-KPB-000
Hook, helmet (Ref #5)
5
Part #77106-KFG-000
MUDGUARD (Ref #6)
6
Part #80104-KPB-000
Box,luggage upper (Ref #7)
7
Part #81251-KPB-750
Box, luggage (lower) (Ref #8)
8
Part #81260-KPB-000
Mat, luggage box (Ref #9)
9
Part #81271-KPB-000
Lid, maintenance (Ref #10)
10
Part #81290-KPB-000
Воздухопровод радиатора (Ref #11)
11
Part #81297-KPB-300
Rubber a, seal (Ref #12)
12
Part #81298-KPB-300
BOLT (Ref #13)
13
Part #90111-187-000
BOLT (Ref #13)
13
Part #90111-187-000
BOLT (Ref #13)
13
Part #90111-187-000
BOLT (Ref #13)
13
Part #90111-187-000
Болт (Ref #14)
14
Part #90131-S0X-A00
Болт (Ref #14)
14
Part #90131-S0X-A00
Болт (Ref #14)
14
Part #90131-S0X-A00
Болт (Ref #14)
14
Part #90131-S0X-A00
Nut, clip (6mm) (Ref #16)
16
Part #90305-GEE-710
Nut, clip (6mm) (Ref #16)
16
Part #90305-GEE-710
Nut, clip (6mm) (Ref #16)
16
Part #90305-GEE-710
Nut, clip (6mm) (Ref #16)
16
Part #90305-GEE-710
Collar, body cover (Ref #17)
17
Part #90312-GF0-000
Collar, body cover (Ref #17)
17
Part #90312-GF0-000
Collar, body cover (Ref #17)
17
Part #90312-GF0-000
Collar, body cover (Ref #17)
17
Part #90312-GF0-000
CLIP (Ref #18)
18
Part #90601-PV3-003
CLIP (Ref #18)
18
Part #90601-PV3-003
CLIP (Ref #18)
18
Part #90601-PV3-003
CLIP (Ref #18)
18
Part #90601-PV3-003
Bolt-washer (Ref #19)
19
Part #93404-060-120-7
