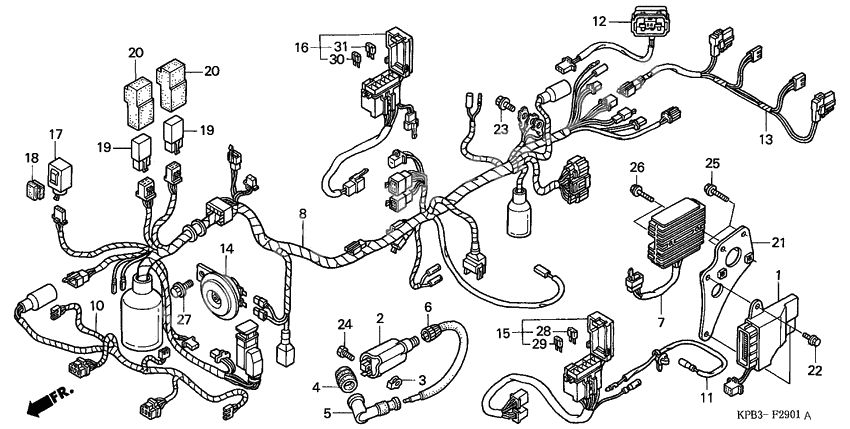

Harness wire NSS250A
Harness wire NSS250A
Unit comp.,spark (Ref #1)
1
Part #30410-KPB-852
Катушка зажигания (Ref #2)
2
Part #30500-ML7-013
Кольцо/шайба (Ref #3)
3
Part #30520-ML7-000
Валик (Ref #4)
4
Part #30605-KM1-000
Cap assy. (Ref #5)
5
Part #30700-KG8-901
Wire assy., ignition (Ref #6)
6
Part #30731-KFG-000
Reg.rect.assy. (Ref #7)
7
Part #31600-KPB-750
Harness wire (Ref #8)
8
Part #32100-KPB-850
Sub cord,h/l&w/l (Ref #10)
10
Part #32102-KPB-850
Sub-wire (Ref #11)
11
Part #32106-KPB-000
Sub-wire, trunk (Ref #12)
12
Part #32107-KPB-000
Wire, rr. (Ref #13)
13
Part #33708-KPB-000
Horn (Ref #14)
14
Part #38110-KPB-000
Предохранитель (Ref #15)
15
Part #38200-KPB-640
Box assy., fuse (Ref #16)
16
Part #38200-KPB-750
Relay, turn signal (Ref #17)
17
Part #38301-KK9-952
Suspension (Ref #18)
18
Part #38306-GE7-000
Реле стартера (Ref #19)
19
Part #38501-GAM-007
Реле стартера (Ref #19)
19
Part #38501-GAM-007
Реле стартера (Ref #19)
19
Part #38501-GAM-007
Реле стартера (Ref #19)
19
Part #38501-GAM-007
Suspension (Ref #20)
20
Part #38506-MY2-691
Suspension (Ref #20)
20
Part #38506-MY2-691
Suspension (Ref #20)
20
Part #38506-MY2-691
Suspension (Ref #20)
20
Part #38506-MY2-691
Plate,elec. (Ref #21)
21
Part #51205-KPB-750
Bolt, flange, 6x14 (Ref #22)
22
Part #90111-HC4-000
BOLT (Ref #23)
23
Part #90149-SE0-003
Bolt, hex., 6x20 (Ref #24)
24
Part #92101-06020-4J
Болт (Ref #25)
25
Part #95701-06012
BOLT (Ref #26)
26
Part #95701-060-200-7
BOLT (Ref #27)
27
Part #95701-080-120-8
Fuse (Ref #28)
28
Part #98200-41000
ПРЕДОХРАНИТЕЛЬ, 15А (Ref #29)
29
Part #98200-41500
Fuse (Ref #30)
30
Part #98200-42000
ПРЕДОХРАНИТЕЛЬ 30A (Ref #31)
31
Part #98200-43000
