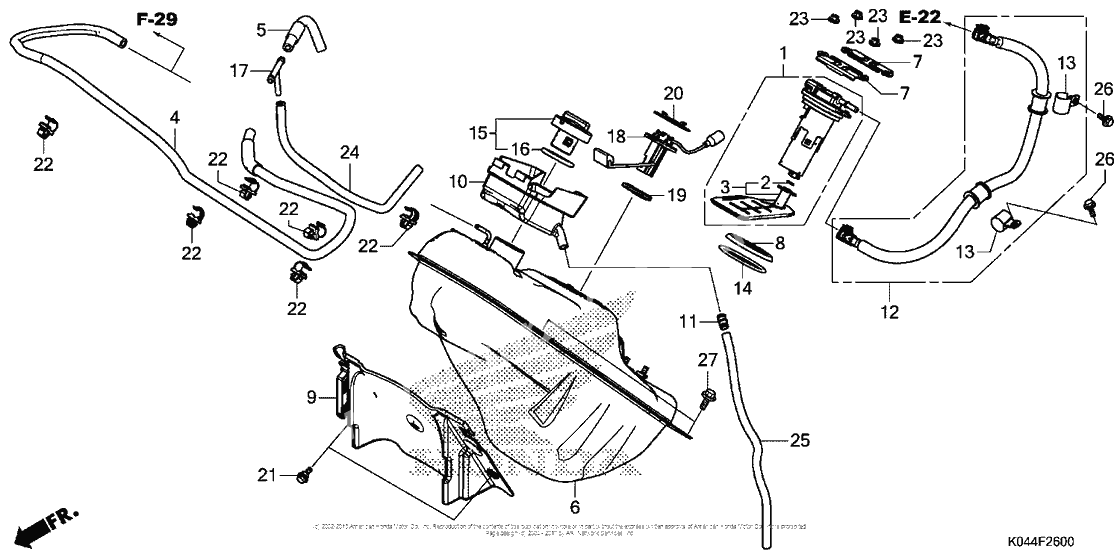

Топливный бак
Топливный бак
UNIT ASSY,FUEL PUMP (Ref #1)
1
Part #16700-K04-934
Прокладка (Ref #2)
2
Part #16706-KVB-S51
Фильтры (Ref #3)
3
Part #16707-K04-931
Tank, fuel (Ref #6)
6
Part #17510-K04-930
Retainer, fuel pump (Ref #7)
7
Part #17517-K04-930
New Genuine Part (Ref #8)
8
Part #17518-GGL-J00
Cover, fuel tank (Ref #9)
9
Part #17520-K04-930
Tray, fuel (Ref #10)
10
Part #17525-K04-930
Joint, fuel tube (Ref #11)
11
Part #17525-KBN-900
Hose, fuel feed (Ref #12)
12
Part #17528-K04-931
Шланг топливный (Ref #13)
13
Part #17568-KRJ-900
New Genuine Part (Ref #14)
14
Part #17572-GGL-J00
Cap, fuel filler (Ref #15)
15
Part #17620-KWN-981
Прокладка (Ref #16)
16
Part #17632-383-831
Fuel unit (Ref #18)
18
Part #37800-K04-931
Packing, base (Ref #19)
19
Part #37801-GA7-700
Retainer, fuel unit (Ref #20)
20
Part #37802-KTL-740
Bolt,flange 6mm (Ref #21)
21
Part #90116-KVB-900
Гайка (Ref #23)
23
Part #94050-06000
Bulk hose, vinyl (Ref #25)
25
Part #95003-250-0360M
BOLT (Ref #26)
26
Part #95701-060-140-0
Bolt, flange, 8x14 (Ref #27)
27
Part #95701-080-140-0
