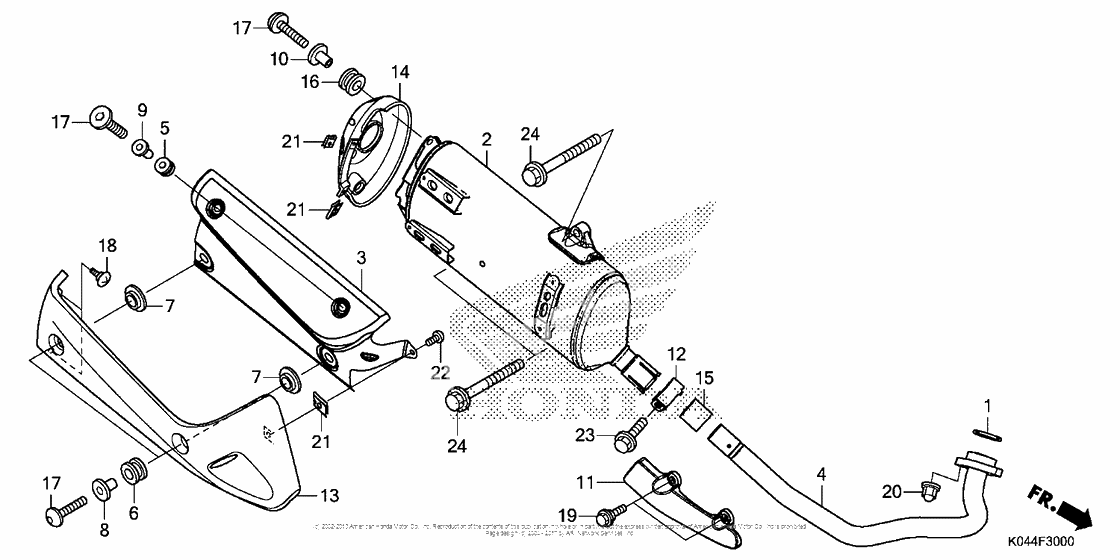

Выхлопная система
Выхлопная система
Gasket, ex. pipe (Ref #1)
1
Part #18291-MN4-920
Muffler, ex. (Ref #2)
2
Part #18300-K04-305
Protector a, muffler (Ref #3)
3
Part #18318-K04-930
Pipe, ex. (Ref #4)
4
Part #18320-K04-930
RUBBER (Ref #5)
5
Part #18345-MBT-610
RUBBER (Ref #6)
6
Part #18346-KTW-900
COLLAR (Ref #7)
7
Part #18347-K04-930
COLLAR (Ref #8)
8
Part #18348-K04-930
COLLAR (Ref #9)
9
Part #18352-K04-930
COLLAR (Ref #10)
10
Part #18353-K04-930
Protector, ex. pipe (Ref #11)
11
Part #18360-K04-930
Band, ex. pipe (Ref #12)
12
Part #18373-K04-930
Protector sub assy. (Ref #13)
13
Part #18380-KTW-900
Cover sub-assy., tail cap (coo) (Ref #14)
14
Part #18381-K04-305
Gasket, muffler (Ref #15)
15
Part #18391-MN1-670
Rubber, rr (Ref #16)
16
Part #80107-GE0-710
Screw, pan (5x20) (Ref #17)
17
Part #90103-K04-930
Screw, special (5mm) (Ref #18)
18
Part #90104-K04-930
BOLT (Ref #19)
19
Part #90107-KTW-900
Nut,hex cap 8mm (Ref #20)
20
Part #90304-KPH-700
Nut, clip (5mm) (Ref #21)
21
Part #90677-KAN-961
Болт (Ref #22)
22
Part #93500-050-120-A
Bolt,flange,8x35 (Ref #23)
23
Part #95701-0803502
Болт (Ref #24)
24
Part #95701-1005007
