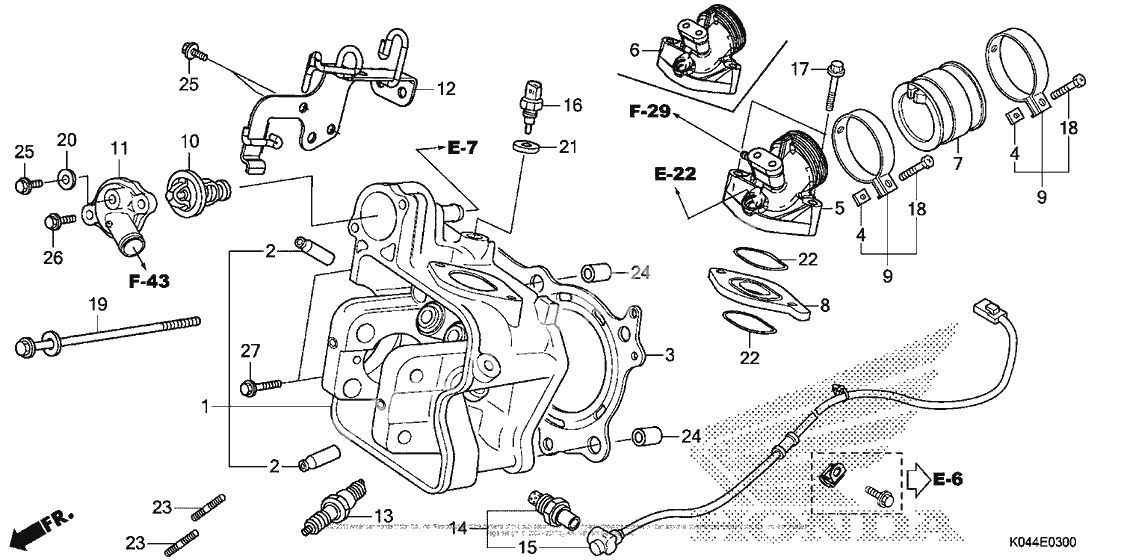

Головка цилиндра
Головка цилиндра
Головка цилиндров (Ref #1)
1
Part #12200-K04-931
Guide (Ref #2)
2
Part #12204-KTW-P00
Прокладка (Ref #3)
3
Part #12251-KTW-901
Nut, square (5mm) (Ref #4)
4
Part #16222-MV4-300
Pipe, inlet (Ref #5)
5
Part #17110-K04-700
Изолятор (Ref #7)
7
Part #17112-KTW-900
Изолятор (Ref #8)
8
Part #17119-KTW-900
BAND (Ref #9)
9
Part #17256-KTW-900
Thermostat (Ref #10)
10
Part #19300-KGF-911
Cover, thermostat (Ref #11)
11
Part #19315-K04-930
Stay, wire harness (Ref #12)
12
Part #31331-K04-930
PLUG (Ref #13)
13
Part #31908-KTW-901
Sensor, oxygen (Ref #14)
14
Part #36531-K04-931
Wire, oxygen sensor (Ref #15)
15
Part #36533-K04-931
Датчик (Ref #16)
16
Part #37870-MBG-003
Болт (Ref #17)
17
Part #90004-GHB-710
Крышка стартера (Ref #18)
18
Part #90005-MEJ-000
Bolt-washer (9x155) (Ref #19)
19
Part #90007-MCT-000
Washer, sealing, 6mm (Ref #20)
20
Part #90441-706-000
Шайба (Ref #21)
21
Part #90454-MC7-000
Прокладка (Ref #22)
22
Part #91302-KVZ-631
BOLT (Ref #23)
23
Part #92900-08022-0E
Dowel pin (Ref #24)
24
Part #94301-12200
BOLT (Ref #25)
25
Part #95701-060-120-0
BOLT (Ref #26)
26
Part #95701-060-200-0
Bolt, flange, 6x28 (Ref #27)
27
Part #95701-0602800
