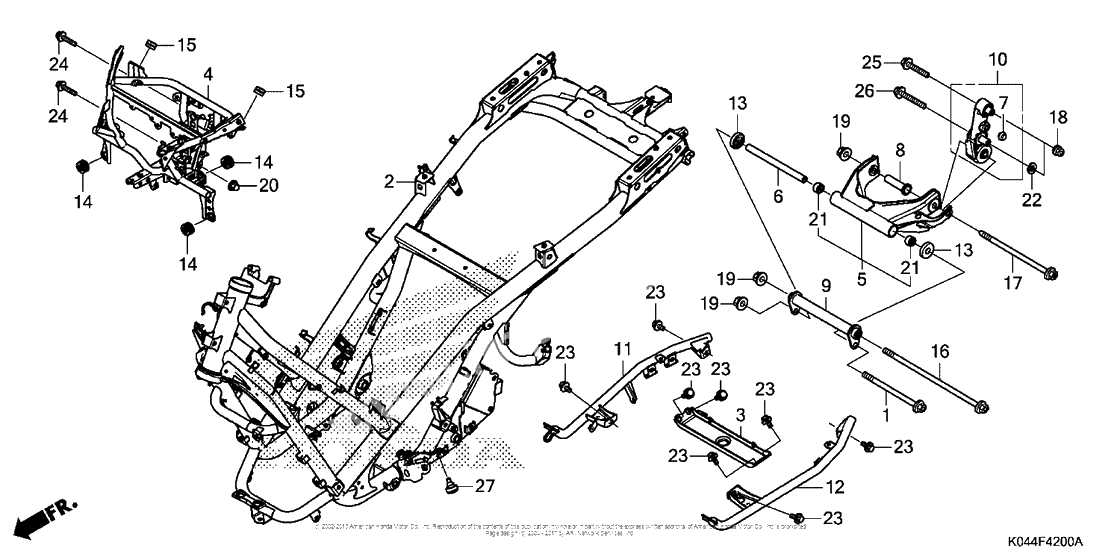

Рама
Рама
Axle, rr. wheel (Ref #1)
1
Part #42301-K04-930
Frame (Ref #2)
2
Part #50100-K04-930
Brkt, center cross (Ref #3)
3
Part #50250-K04-930
Stay, fr. cover (Ref #4)
4
Part #50310-K04-930
Bracket sub-assy. b (Ref #5)
5
Part #50349-K04-930
Collar b (Ref #6)
6
Part #50352-KTW-900
Rubber b, stopper (Ref #7)
7
Part #50354-428-000
COLLAR (Ref #8)
8
Part #50354-K04-930
Bracket a, eng hgr (Ref #9)
9
Part #50360-K04-930
Rod, swing (Ref #10)
10
Part #50380-K04-930
Stay, r. floor (Ref #11)
11
Part #50610-K04-900
Stay, l. floor (Ref #12)
12
Part #50620-K04-930
Dust seeal (Ref #13)
13
Part #52144-GF5-003
RUBBER (Ref #14)
14
Part #61304-415-000
Rubber, screen setting (Ref #15)
15
Part #64216-GJ2-730
Bolt, flg (12x360) (Ref #16)
16
Part #90101-K04-930
BOLT (Ref #17)
17
Part #90103-KTW-900
Nut,u,10mm (Ref #18)
18
Part #90304-KGH-901
Nut, flange, 12mm (Ref #19)
19
Part #90306-KF0-003
Nut, cap (8mm) (Ref #20)
20
Part #90443-KTM-970
Bearing, rr. (Ref #21)
21
Part #91071-KS6-004
Washer, plain, 10mm (Ref #22)
22
Part #9410210000
Bolt, flange, 8x14 (Ref #23)
23
Part #95701-080-140-0
Болт (Ref #24)
24
Part #95801-0804000
Болт (Ref #25)
25
Part #90151-HC5-000
Bolt, flange, 10x65 (Ref #25)
25
Part #95801-1006500
Болт (Ref #26)
26
Part #95801-1007500
Rub, stand stopper (Ref #27)
27
Part #50505-K04-930
