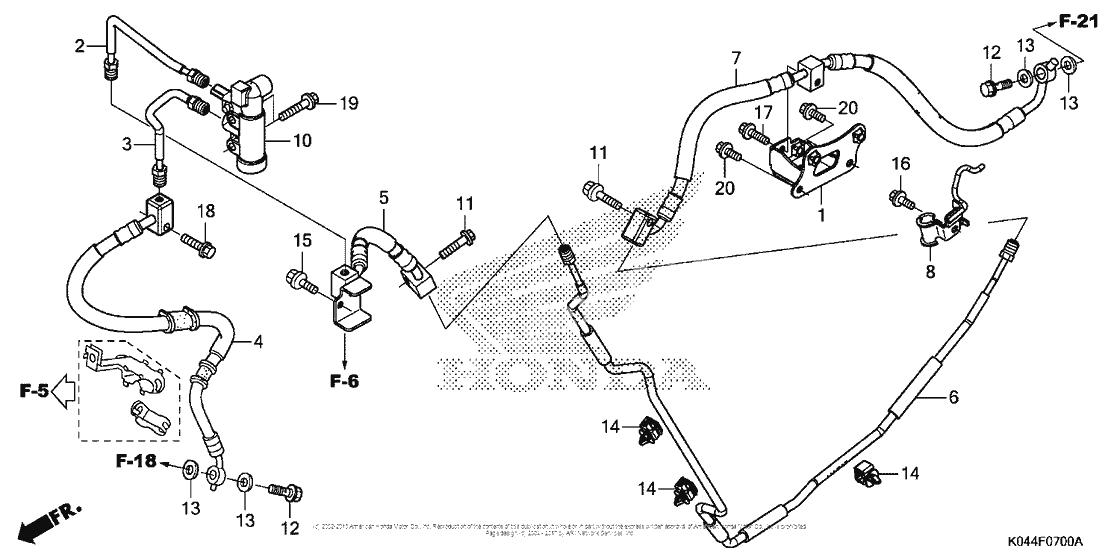

Задняя тормозная система (Nss300)
Задняя тормозная система (Nss300)
Stay, rr. brake hose (Ref #1)
1
Part #18654-K04-930
Pipe c, rr. brake (Ref #2)
2
Part #43313-K04-930
Pipe d, rr. brake (Ref #3)
3
Part #43314-K04-930
Hose e, rr. brake (Ref #4)
4
Part #43315-K04-931
Hose g, rr. brake (Ref #5)
5
Part #43317-K04-931
Pipe h, rr. brake (Ref #6)
6
Part #43318-K04-930
Hose j, rr. brake (Ref #7)
7
Part #43319-K04-931
Clamp, parking cable (Ref #8)
8
Part #43470-K04-900
Valve assy., delay (Ref #10)
10
Part #46300-MGS-D81
Bolt (6x25) (Ref #11)
11
Part #90050-KFL-850
Bolt, oil (10x22) (Ref #12)
12
Part #90145-MS9-612
Шайба (Ref #13)
13
Part #90545-300-000
Clamp (7.0) (Ref #14)
14
Part #90661-MGS-D71
BOLT (Ref #15)
15
Part #95701-060-120-8
BOLT (Ref #16)
16
Part #95701-060-160-7
BOLT (Ref #17)
17
Part #95701-060-180-7
BOLT (Ref #18)
18
Part #95701-060-250-8
BOLT (Ref #19)
19
Part #95701-060-320-8
BOLT (Ref #20)
20
Part #95701-060-140-8
