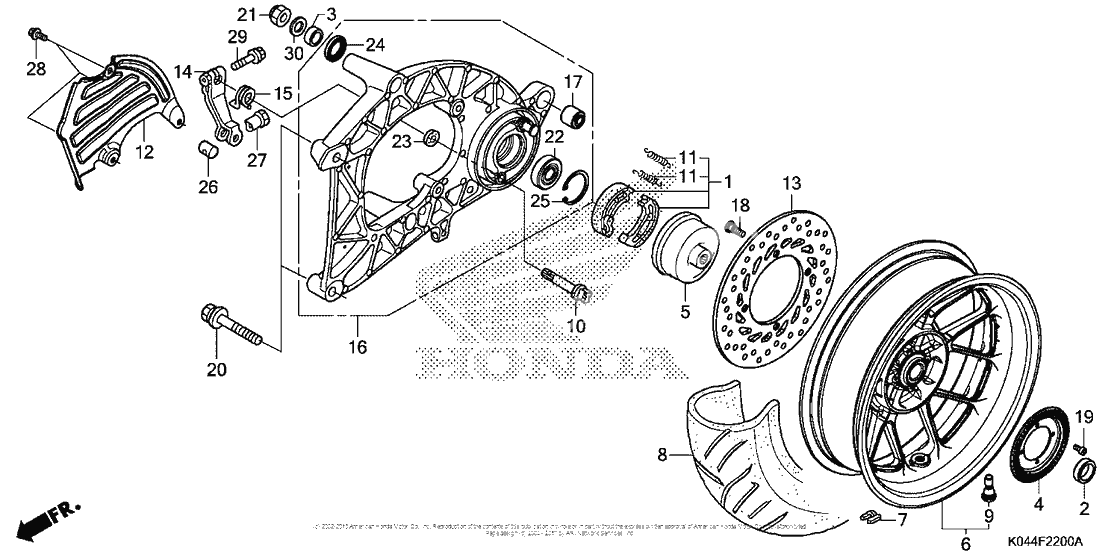

Заднее колесо & Задний рычаг (Маятник)
Заднее колесо & Задний рычаг (Маятник)
Отсутствующе (Ref #1)
1
Part #06430-KVZ-630
COLLAR (Ref #2)
2
Part #42311-KSV-J00
Collar b, rr. axle (Ref #3)
3
Part #42312-K04-930
Hub, parking brake (Ref #5)
5
Part #42610-K04-902
Wheel sub *nh303m* (Ref #6)
6
Part #42650-K04-335ZA
Грузик (Ref #7)
7
Part #42706-MER-D00
Грузик (Ref #7)
7
Part #42705-MER-D00
Грузик (Ref #7)
7
Part #42704-MER-D00
Tire, rr. (Ref #8)
8
Part #42711-K04-931
Valve, rim (Ref #9)
9
Part #42753-KWF-901
Cam, parking brake (Ref #10)
10
Part #43141-K04-900
Spring, brake shoe (Ref #11)
11
Part #43151-GC4-000
Protector, rr. (Ref #12)
12
Part #43156-K04-930
Disk, rr. brake (Ref #13)
13
Part #43251-K04-931
Arm, parking brake (Ref #14)
14
Part #43410-K04-900
Пружина (Ref #15)
15
Part #43472-KSV-J00
Swingarm assy. (Ref #16)
16
Part #52100-K04-900
New Genuine Part (Ref #17)
17
Part #52108-KTW-B00
Bolt, fr. (8x24) (Ref #18)
18
Part #90105-KL8-741
Bolt, disk (8x24) (Ref #18)
18
Part #90105-MV9-003
Bolt-washer (Ref #20)
20
Part #90132-KSV-J00
Nut,u,16mm (Ref #21)
21
Part #90305-KWN-701
Bearing (6303uu) (Ref #22)
22
Part #91051-KS4-003
Dust,10x16x4.5 (Ref #23)
23
Part #91259-VM0-000
Dust seal, 37x25x6 (Ref #24)
24
Part #91258-HB3-003
Circlip, internal, 47mm (Ref #25)
25
Part #9452047000
Joint a (Ref #26)
26
Part #95015-31001
Nut a, brake rod adjusting (Ref #27)
27
Part #9501541000
BOLT (Ref #28)
28
Part #95701-060-160-7
BOLT (Ref #29)
29
Part #95701-060-280-8
Шайба (Ref #30)
30
Part #90505-K04-930
