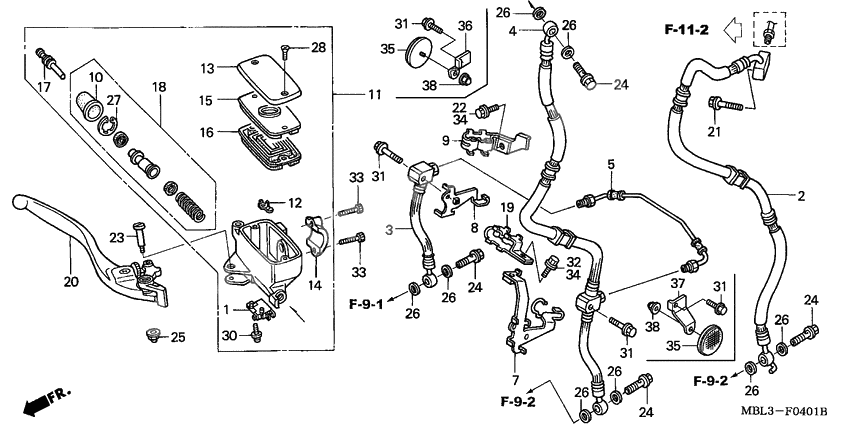

Fr. brake master cylinder NT650V2/3/4/5
Fr. brake master cylinder NT650V2/3/4/5
Switch, fr. stop (Ref #1)
1
Part #35340-MM5-600
Hose comp a,brake (Ref #2)
2
Part #43321-MBL-D01
Hose comp,r fr br (Ref #3)
3
Part #45124-MBL-D01
Hose comp,l fr br (Ref #4)
4
Part #45125-MBL-D01
Pipe comp,fr brk (Ref #5)
5
Part #45126-MBL-D00
Stay,fr brk hose (Ref #7)
7
Part #45156-MBL-D00
STAY (Ref #8)
8
Part #45157-MBL-D60
Clamper,brake hos (Ref #9)
9
Part #45161-MBL-D00
Ботинок (Ref #10)
10
Part #45504-410-003
Sub assy,fr m/c (Ref #11)
11
Part #45510-MBL-D01
PROTECTOR (Ref #12)
12
Part #45512-MA6-006
Cap, master cylinder (Ref #13)
13
Part #45513-MM5-016
HOLDER (Ref #14)
14
Part #45517-166-006
Пластина (Ref #15)
15
Part #45518-MM5-006
DIAPHRAGM (Ref #16)
16
Part #45520-MM5-006
Толкатель (Ref #17)
17
Part #45525-MBL-D01
Cylinder set,mast (Ref #18)
18
Part #45530-MBR-006
Clamp, brake hose (Ref #19)
19
Part #52115-MAT-000
Lever, r. handle (Ref #20)
20
Part #53170-MAJ-G41
Болт (Ref #21)
21
Part #90010-ML0-720
Bolt, r (Ref #23)
23
Part #90114-MA5-671
Nut, cap, 6mm (Ref #25)
25
Part #90201-415-000
Circlip (Ref #27)
27
Part #90651-MA5-671
Болт (Ref #28)
28
Part #93600-040120G
Screw-washer (Ref #30)
30
Part #93893-040-120-7
Болт ,6X22 (Ref #33)
33
Part #96600-060-220-7
Болт ,6X22 (Ref #33)
33
Part #96600-060-220-7
Болт ,6X22 (Ref #33)
33
Part #96600-060-220-7
Болт ,6X22 (Ref #33)
33
Part #96600-060-220-7
Bolt, flange, 6x14 (Ref #34)
34
Part #96001-0601407
Bolt, flange, 6x14 (Ref #34)
34
Part #96001-0601407
Bolt, flange, 6x14 (Ref #34)
34
Part #96001-0601407
Bolt, flange, 6x14 (Ref #34)
34
Part #96001-0601407
