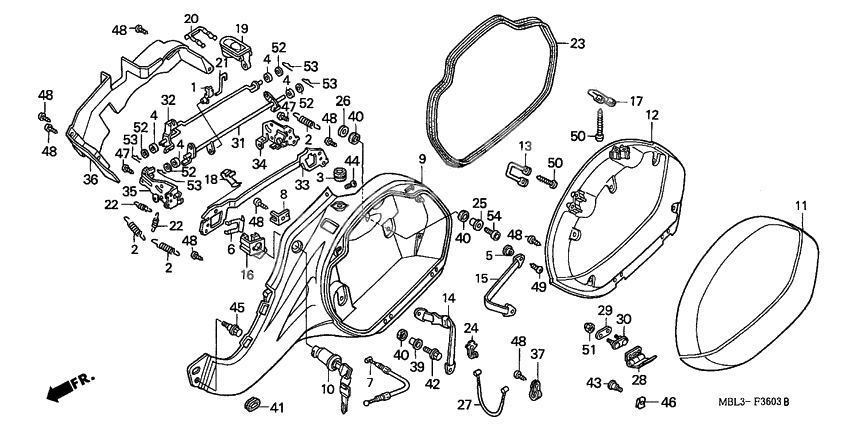

L. saddlebag NT650V2/3/4/5
L. saddlebag NT650V2/3/4/5
Joint, rod (Ref #1)
1
Part #16263-ZJ4-003
RUBBER (Ref #3)
3
Part #33606-428-610
Collar, riveting (Ref #5)
5
Part #61102-329-300
Пружина (Ref #6)
6
Part #75581-673-000
Кабель замка (Ref #7)
7
Part #77155-MBL-610
Stay,cowl lid loc (Ref #8)
8
Part #77157-MBL-610
Cowl (Ref #9)
9
Part #77230-MBL-D00ZL
Cowl.l se*pb297m* (Ref #9)
9
Part #77230-MBL-D00ZJ
Key, seat lock (Ref #10)
10
Part #77234-MBL-611
Груз (Ref #11)
11
Part #77237-MBL-D00ZL
Lid,l sad*pb297m* (Ref #11)
11
Part #77237-MBL-D00ZJ
Inner lid,l saddl (Ref #12)
12
Part #77238-MBL-D00
Bar a,saddlebag l (Ref #13)
13
Part #77239-MBL-D00
Band comp,a saddl (Ref #14)
14
Part #77240-MBL-D00
Band comp,b saddl (Ref #15)
15
Part #77245-MBL-D00
Stay,cowl lid loc (Ref #16)
16
Part #77247-MBL-610
Bar b,saddlebag l (Ref #17)
17
Part #77249-MBL-D00
PLATE,STOPPER (Ref #18)
18
Part #77257-MBL-D00
Lever assy,open (Ref #19)
19
Part #77260-MBL-D00
Set spring lid open (Ref #20)
20
Part #77265-MBL-610
Rod,open (Ref #21)
21
Part #77266-MBL-D00
Пружина (Ref #22)
22
Part #77269-MBL-610
Пружина (Ref #22)
22
Part #77269-MBL-610
Пружина (Ref #22)
22
Part #77269-MBL-610
Пружина (Ref #22)
22
Part #77269-MBL-610
Rubber,saddlebag (Ref #23)
23
Part #77270-MBL-D00
Stay,stopper cabl (Ref #24)
24
Part #77285-MBL-D00
Collar,saddlebag (Ref #25)
25
Part #77288-MBL-610
Washer,saddlebag (Ref #26)
26
Part #77289-MBL-610
Cable,l lid stopp (Ref #27)
27
Part #77290-MBL-D00
Hinge comp,saddle (Ref #28)
28
Part #77295-MBL-D00
Rubber,saddlebag (Ref #29)
29
Part #77301-MBL-D00
Plate,saddlebag h (Ref #30)
30
Part #77302-MBL-D00
Cam b,l saddlebag (Ref #31)
31
Part #77352-MBL-610
Cam c,l saddlebag (Ref #32)
32
Part #77353-MBL-610
Base plate,l sadd (Ref #33)
33
Part #77356-MBL-610
Plate a comp,l sa (Ref #34)
34
Part #77358-MBL-610
Plate b comp,l sa (Ref #35)
35
Part #77359-MBL-610
Cover,l saddlebag (Ref #36)
36
Part #77370-MBL-D00
Stay b, lid stopper (Ref #37)
37
Part #81254-MN5-000
COLLAR (Ref #39)
39
Part #81355-MN5-000
Уплотнение (Ref #41)
41
Part #83551-MA6-000
Bolt, special (6x17) (Ref #42)
42
Part #90085-MAJ-A20
Screw,special 5mm (Ref #43)
43
Part #90104-MBL-D00
Болт (Ref #44)
44
Part #90109-SB6-000
Болт (Ref #45)
45
Part #90116-ME9-000
Nut, clip (5mm) (Ref #46)
46
Part #90677-KAN-961
Болт (Ref #47)
47
Part #93903-25180
Болт (Ref #47)
47
Part #93903-25180
Болт (Ref #47)
47
Part #93903-25180
Болт (Ref #47)
47
Part #93903-25180
Болт (Ref #49)
49
Part #93903-25380
Screw,tapping,5x3 (Ref #50)
50
Part #93903-25780
Screw,tapping,5x3 (Ref #50)
50
Part #93903-25780
Screw,tapping,5x3 (Ref #50)
50
Part #93903-25780
Screw,tapping,5x3 (Ref #50)
50
Part #93903-25780
Nut, cap, 5mm (Ref #51)
51
Part #94021-050000S
Bolt, socket (6x40) (Ref #54)
54
Part #96600-0604007
