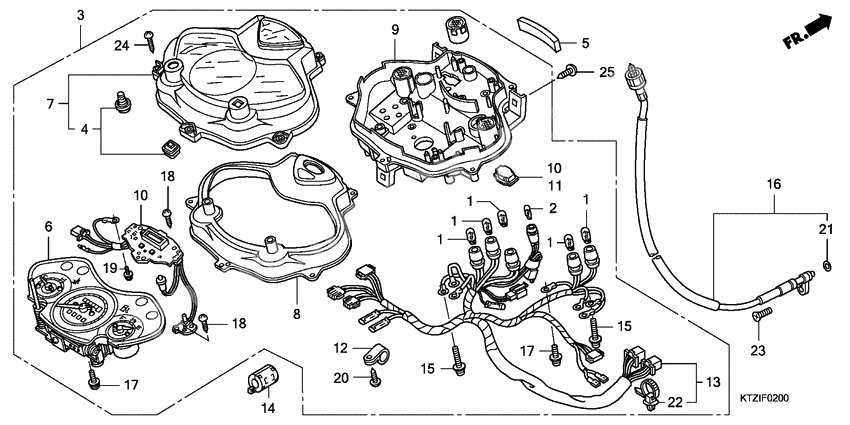

Meter
Meter
Bulb, wedge base (12v 1.7w) (Ref #2)
2
Part #34908-MG9-951
Meter assy (Ref #3)
3
Part #37100-KTZ-D02
Grommet kit (Ref #4)
4
Part #37101-KTF-305
Sponge (Ref #5)
5
Part #37101-KTZ-D00
Meter comp (Ref #6)
6
Part #37110-KTZ-D01
Case assy. (Ref #7)
7
Part #37120-KTZ-D01
Plate assy. (Ref #8)
8
Part #37125-KTZ-D01
Case assy. (Ref #9)
9
Part #37130-KTZ-D01
Circuit assy. (Ref #10)
10
Part #37140-KTZ-D02
Circuit assy. (Ref #10)
10
Part #37140-KTZ-D02
Circuit assy. (Ref #10)
10
Part #37140-KTZ-D02
Circuit assy. (Ref #10)
10
Part #37140-KTZ-D02
CAP (Ref #11)
11
Part #37211-GFC-901
CLAMP (Ref #12)
12
Part #37215-KS3-901
Socket comp. (Ref #13)
13
Part #37223-KTZ-D00
Комплект для фильтра (Ref #14)
14
Part #37225-KTZ-305
Screw-washer, 3x22 (Ref #15)
15
Part #37305-KE5-008
Screw-washer, 3x22 (Ref #15)
15
Part #37305-KE5-008
Screw-washer, 3x22 (Ref #15)
15
Part #37305-KE5-008
Screw-washer, 3x22 (Ref #15)
15
Part #37305-KE5-008
Cable assy,spdmt (Ref #16)
16
Part #44830-KGF-900
Screw-washer (Ref #17)
17
Part #90035-166-008
Screw-washer (Ref #17)
17
Part #90035-166-008
Screw-washer (Ref #17)
17
Part #90035-166-008
Screw-washer (Ref #17)
17
Part #90035-166-008
Screw, tap (3x14) (Ref #18)
18
Part #90101-KY6-008
Screw, tap (3x14) (Ref #18)
18
Part #90101-KY6-008
Screw, tap (3x14) (Ref #18)
18
Part #90101-KY6-008
Screw, tap (3x14) (Ref #18)
18
Part #90101-KY6-008
Screw-washer (3x12) (Ref #19)
19
Part #90108-GN2-008
Screw, tap (4x14) (Ref #20)
20
Part #90109-MZ5-008
O-ring,7x1.75 (Ref #21)
21
Part #91351-KEB-621
CLIP (Ref #22)
22
Part #91540-S30-003
Screw, oval (5x18) (Ref #23)
23
Part #93700-050180A
Болт (Ref #24)
24
Part #93901-22320
Screw, tapping, 5x12 (Ref #25)
25
Part #93903-35210
